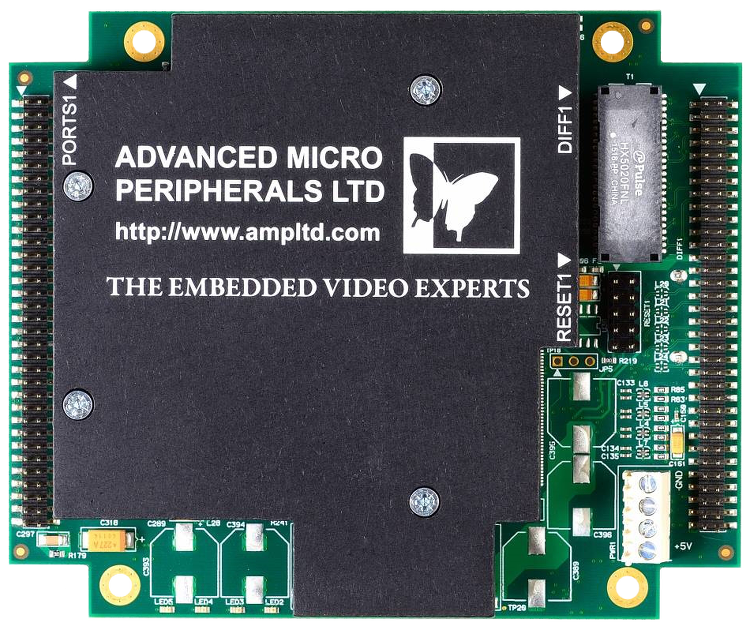

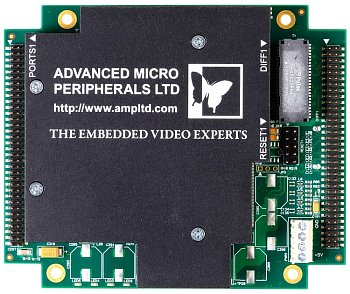

DXStream-HDMI

Ultra Low Latency Standalone H.264 Streaming Client
Info only Vendor:
Info only
  • Details
  • Specification
  • Real-time H.264 decode at up to 1080p60
  • HDMI/DVI output
  • Standard PC/104 mechanical form factor
  • Operating temperature: up to –40˚C to +85˚C

The DXStream-HDMI is an intelligent, stand-alone, ultra-low latency H.264 streaming client that receives, decodes, and displays H.264 encoded video streams. The DXStream-HDMI supports the industry standard RTP/RTSP protocols for streaming data via the integrated 100/1000MBit Ethernet connection. This SWaP optimised solution is ideal for rapid deployment in demanding applications in Military, Communications, Transportation, Mining and Energy industries.

The DXStream-HDMI features a dedicated hardware decode engine capable of decoding up to 1080p60 H.264 video at full size and full frame-rate with Ultra Low Latency (under 60ms). The intelligent streaming client is configured via a web interface and once configured the DXStream-HDMI runs autonomously without any user interaction.

The DXStream-HDMI is an intelligent stand-alone device with it’s own on-board CPU and does not require a host CPU or any driver or OS software. For mechanical convenience, the module can be mounted on a PC/104 stack without consuming host CPU resources.

Highlights

  • Real-time H.264 decode at up to 1080p60
  • Ultra Low Latency technology with latency below 60ms
  • H.264/MPEG-4 AVC (Part 10) Decoder
  • HDMI/DVI output
  • RTSP/RTP streaming protocol support
  • Single, rugged, real-time video streaming client solution
  • Stand-alone operation
  • Web interface for configuration
  • Standard PC/104 mechanical form factor
Applications
  • All-round Real-Time Situational Awareness
  • Real-time video feedback from remote platforms
  • Unmanned vehicles (UAV, ROV)
  • Real-time IP video distribution
  • Remote Video Surveillance
  • Border Security
  • Traffic Monitoring and Control

Technical specifications
Video Output: HDMI/DVI output up to 1080p60
H.264 Video Decoding: ITU-T H.264 (ISO/IEC 14496-10), supported profiles:

- Baseline profile
- Main profile (I,P frame coding only)
- High profile (I, P frame coding only) at level 4.1

Up to 1080p60 decode @ full frame rate
Supports Variable Bit Rate (VBR)
Supports Constant Bit Rate (CBR)
Streaming Protocols: RTSP (RFC2326) and RTP (RFC3350) support
RTSP/RTP over TCP
RTP over UDP
Ultra Low Latency: Less than 60ms video decode latency
Network Interface: 100/1000MBit Ethernet for RTSP/RTP streaming and control
Mechanical: Intelligent stand-alone module, does not require host computer
Standard 4.55 x 3.775in PC/104 form factor
Mechanical mounting for PC/104 stack
Single +5V supply

Environmental and physical specifications

Operating Temperature: 0˚C to 60˚C
–40˚C to +85˚C (extended temp option)
