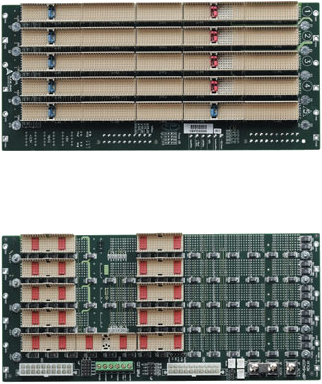

cBP-6405R
5-slot 64-bit 6U CompactPCI H.110 Bus Backplane
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- PICMG: 2.0 R3.0, 2.1 R2.0, 2.5 R1.0
- Peripheral slots: 4
- cPCI Bus: up to 64-bit/66MHz
- Two ATX connector DC screw terminals
Adlink offers a wide selection of standard backplanes from single up to 20 slots. Furthermore, a professional OEM team is capable of custom backplanes with a quick turnaround tailored to your specifications. Adlink makes designing, developing, prototyping, and maintaining your projects simple & efficient. For all your backplane needs, give us a call, we have a solution for you.
| Technical specifications | |
| PICMG | 2.0 R3.0, 2.1 R2.0, 2.5 R1.0 |
| Dimensions | 120.9 x 262.05 (mm, W x H) |
| Segment | 1 |
| cPCI Bus | Up to 64-bit/66 MHz |
| System Slot | Right-hand side |
| System Slot Rear I/O | P3, P4 and P5 rear I/O with AB-type shroud |
| Peripheral slots | 4 |
| Peripheral Slot Rear I/O | P3 and P5 rear I/O with AB-type shroud |
| H.110 Bus | Bus Comply with PICMG 2.5, for all peripheral slots |
| V (I/O) | 3.3 V or 5 V selectable, factory default is 5 V |
| Power Input | Two ATX connector DC screw terminals |
| Other Connectors | INH#, Reset, PWR_FAL#, Voltage LEDs, H.110, Power Pairs (VRG, Vbat) |
| Chassis or Sub-systems | cPCIS-6400X, cPCIS-6400U series |
| Model | Description |
| cBP‑6405R | 5-slot 64-bit 6U CompactPCI H.110 Bus Backplane |
