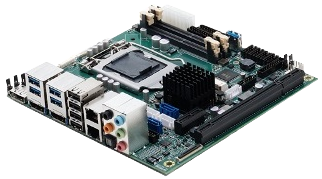

AmITX-SL-G
Updated Mini-ITX Embedded Board with 6th/7th Gen Intel Core i7/i5/i3, Pentium and Celeron Desktop Processor (formerly codename: Sky Lake)
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 6th/7th Gen Intel Core i7/i5/i3, Pentium G4400/G4400TE and Celeron G3900/G3900TE
- Up to 32 GB dual channel DDR4 at 2133 MHz
- Intel Gen 9 graphics, 3x DP, LVDS co-lay with eDP (opt.)
- Operating temperature: 0°C to +60°C
The AmITX-SL-G is a Mini-ITX motherboard supporting the Desktop 6th Generation Intel Core i7/i5/i3, Pentium and Celeron Processor with Intel Q170/H110 Chipset. The AmITX-SL-G is specifically designed for customers who need high-level processing and graphics performance with a long product life solution.
The AmITX-SL-G features three DisplayPorts, dual Gigabit Ethernet ports, USB 3.0 ports, USB 2.0 ports, SATA 6 Gb/s ports, and High Definition Audio with 7.1 channels. Expansion is provided by one PCIe x16, one PCIe x1, and two mini-PCIe slots. The onboard feature connector provides GPIO, SMBus, and I2C support. The board is equipped with SPI AMI EFI BIOS, supporting embedded features such as hardware monitor and watchdog timer.
| Technical specifications | |
| Processor |
Desktop 6th Generation Intel Core i7/i5/i3 and Pentium/Celeron Processor, LGA1151 socket Intel Core i7-6700 Processor, 4C, 3.4/4.0 GHz, 8M, 65W Intel Core i7-6700TE Processor, 4C, 2.4/3.4 GHz, 8M, 35W Intel Core i5-6500 Processor, 4C , 3.2/3.6 GHz 6M, 65W Intel Core i5-6500TE Processor, 4C, 2.3/3.3 GHz, 6M, 35W Intel Core i3-6100 Processor, 2C, 3.7 GHz, 3M, 51W Intel Core i3-6100TE Processor, 2C, 2.7 GHz, 4M, 35W Intel Pentium G4400 Processor, 2C, 3.3 GHz, 3M, 54W Intel Pentium G4400TE Processor, 2C, 2.4 GHz, 3M, 35W Intel Celeron G3900 Processor, 2C, 2.8 GHz, 2M, 51W Intel Celeron G3900TE Processor, 2C, 2.3 GHz, 2M, 35W Desktop 7th Generation Intel Core i7/i5/i3 and Pentium/Celeron Processor, LGA1151 socket Intel Core i7-7700 Processor, 4C, 3.6/4.2 GHz, 8M, 65W Intel Core i7-7700T Processor, 4C, 2.9/3.8 GHz, 8M, 35W Intel Core i5-7500 Processor, 4C, 3.4/3.8 GHz, 6M, 65W Intel Core i5-7500T Processor, 4C, 2.7/3.3 GHz, 6M, 35W Intel Core i3-7101E Processor, 2C, 3.9 GHz, 3M, 54W Intel Core i3-7101TE Processor, 2C, 3.4GHz, 3M, 35W Supports: Intel VT, Intel TXT, Intel SSE4.2, Intel HT Technology, Intel 64 Architecture, Execute Disable Bit, Intel Turbo Boost Technology 2.0, Intel AVX2, Intel AES-NI, PCLMULQDQ Instruction, Intel Secure Key and Intel TSX-NI |
| Chipset | Intel Q170/H110 Chipset |
| BIOS |
AMI EFI in 16MB SPI BIOS with Intel AMT 11.0 support (Q170 only) SPI header for external BIOS, optional onboard SPI BIOS socket |
| Debug Interface | 40-pin multipurpose flat cable connector. Use in combination with DB-40 debug module providing BIOS POST code LEDs, BMC access, SPI BIOS flashing, power testpoints, debug LEDs |
| Memory | Dual channel non-ECC 2133/2400 MHz DDR4 memory up to 32GB in dual vertical SODIM sockets |
| SEMA Support | Supports: Voltage/Current monitoring, Power sequence debug support, AT/ATX mode control, Logistics and Forensic information, Flat Panel Control, General Purpose I2C, Failsafe BIOS (dual BIOS ), Watchdog Timer and Fan Control |
| Expansion Slots |
1 PCIe x16 Gen3 1 PCIe x1 Gen2 1x Mini-PCIe card (half size): supporting PCIex1(Gen 2)/USB 2.0 (top side) 1x Mini-PCIe card (full size): supporting PCIex1(Gen 2) or mSATA/USB 2.0 (bottom side) |
| Serial ATA |
3x SATA 6 Gbps ports (Jumper select NA/3.3V/5V for SATA1 and SATA2 to deliver power by SATA pin7; Default is NA) 2x SATA power connector |
| USB |
4x USB 3.0 and 4x USB 2.0 on rear I/O 2x USB 3.0 onboard header (H110: USB 2.0) 1x USB 3.0 on vertical connector with keep out area for dongle (H110: USB 2.0) |
| KB/MS | 1x PS/2 internal header |
| Serial Ports |
3x RS-232 headers, 1x RS-232/422/485 headers (Support NA (Default)/5V/12V by jumper selection) |
| Digital IO | 10x GPIO via onboard feature connector |
| Audio Codec | Realtek ALC886 |
| Audio Interfaces |
7.1 channel audio via 5 jacks and S/PDIF output on rear I/O 7.1 channel audio signals and S/PDIF output on internal header |
| Graphics Core | Intel 9th generation LP graphics core architecture with up to 18 execution units supporting DirectX 11/12, OGL4.3/4.4, and up to three independent, simultaneous displays |
| DisplayPort |
3x DisplayPort v1.2 with resolution up to 4096 x 2160 @ 24Hz (Q170), 2x DisplayPort (H110) |
| LVDS | LVDS (optional): Single/dual channel 24-bit LVDS up to 1920x1080 @ 60 Hz (from eDP-to-LVDS converter) |
| eDP | eDP (optional): Supports 3840x2160 resolution @ 60Hz, 24bpp (not available concurrently with LVDS) |
| Ethernet |
Intel i219-LM (PHY) Ethernet controller (H110: i219-V) Supports Intel AMT 11.0 (Q170 only) Supports Intel vPro (Q170 only) Intel i210AT (MAC/PHY) Ethernet controller 10/100/1000 GbE connection |
| TPM | Atmel AT97SC3204 (optional) |
| Power | Standard Input: ATX: 12V ±5% / 5Vsb ±5%, AT: 12V ±5% Peripheral Output: Onboard headers for fan and SATA power, ATX Power Connector (14-pin) |
| Dimensions | 170 mm x 170 mm |
| Intelligent Middleware SEMA |
Local management, control of embedded computer systems Extended EAPI for monitoring, control and analytics applications Multiple OS support across platforms (x86, ARM) |
| Operating Systems |
Standard Support: 6th Gen CPU: Windows 10/8.1/7, Linux 7th Gen CPU: Windows 10, Linux Extended Support (BSP): 6th Gen CPU: WES7, Linux, VxWorks (TBD) 7th Gen CPU: Linux, VxWorks (TBD) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | Standard: 0°C to 60°C |
| Storage temperature | -20˚C to +80˚C |
| Humidity | 40° C @ 95% RH Non-condensing |
| Certification | CE, FCC, Class B |
| Model | Description |
| AmITX-SL-G-Q170 | Mini-ITX for Intel 6th/7th Gen Core i7/i5/i3 LGA 1151 Desktop Processor with Q170 Chipset |
| AmITX-SL-G-H110 | Mini-ITX for Intel 6th/7th Gen Core i7/i5/i3 LGA 1151 Desktop Processor with H110 Chipset |
| TPMMOD-2 | TPM 2.0 Module for ADLINK Mini-ITX Embedded board AmITX-Series |
| Chipset Heatsink 27.8x25x27.8mm | AmITX-SL/HL TM-HS, Chipset Heatsink 27.8x25x27.8mm Incl. in 91-7A101-**** |
| 32-20495-0000 | LGA1150 CPU Cooler, H=61.4mm, 95W |
| 32-20512-0000 | LGA1150 CPU Cooler, H=46.05mm, 45W |
| 32-20513-0000 | LGA1150 CPU Cooler, H=30.0mm, 45W |
| 32-20113-3000 | LGA1150 CPU Cooler, H=50.2mm, 95W |
