AmITX-BT-I
Mini-ITX Embedded Board with Intel Atom E3800 Series SoC and Intel Celeron Processors (formerly codename: Bay Trail)
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Intel Atom Processor E3800 Series SoC and Intel Celeron N2930/J1900 Processors
- Up to 8 GB dual channel DDR3L 1333/1066 MHz
- VGA, 24-bit dual channel LVDS and HDMI OpenGL 3.0
- Extreme Rugged Operating Temperature: -40°C to +85°C

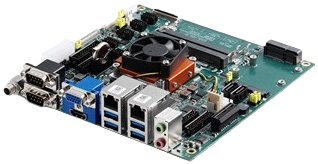

The AmITX-BT-I is a Mini-ITX Embedded Boards supporting the Intel Atom processor E3800 Series and Intel Celeron processor system-on-chip (SoC). The AmITX-BT-I is specifically designed for customers who need high-level processing and graphics performance with low power consumption in a long product life solution.
The Intel Atom processor E3800 and Intel Celeron processor support non-ECC type DDR3L dual-channel memory at 1066/1333 MHz to provide excellent overall performance. Integrated Intel Gen7 HD Graphics includes features such as OpenGL 3.1, DirectX 11, OpenCL 1.1 and support for H.264, MPEG2, VC1, VP8 hardware decode. Graphics outputs include VGA, DDI ports supporting HDMI and optional dual-channel 18/24-bit LVDS. The AmITX-BT-I has dual stacked SODIMM sockets for up to 8 GB non-ECC type DDR3L memory. In addition, an onboard miniSD card slot is supported (Only for E38XX SKU).
The AmITX-BT-I features dual Gigabit Ethernet port, USB 3.0 ports and USB 2.0 ports, and SATA 3 Gb/s ports. Support is provided for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS, supporting embedded features such as hardware monitor and watchdog timer.
| Technical specifications | |
| Processor |
Atom E3845 1.91 GHz 542/792 (Turbo) 10W (4C/1333) Atom E3825 1.33 GHz 533 (No Turbo) 6W (2C/1066) Atom E3827 1.75 GHz 533/792 (Turbo) 8W (2C/1333) Atom E3826 1.46 GHz 533/667 (Turbo) 7W (2C/1066) Atom E3815 1.46 GHz 400 (No Turbo) 5W (1C/1066) Celeron N2930 1.83 GHz, 313/854 (Turbo) 7.5W (4C/1333) Celeron J1900 2.00 GHz, 688/854 (Turbo) 10W (4C/1333) Supports single, dual or quad Out-of-Order Execution (OOE) processor cores, Intel VT-x, Intel SSE4.1 and SSE4.2, Intel 64 architecture, IA 32-bit, PCLMULQDQ Instruction DRNG, Intel Thermal Monitor (TM1 & TM2) Note: the availability of the features dependent on processor SKU |
| Memory | Dual channel non-ECC 1333/1066 MHz DDR3L memory up to 8GB in dual stacked SODIMM sockets |
| BIOS | AMI EFI 8MB SPI BIOS |
| SEMA Support | Supports: Voltage/Current monitoring, Power sequence debug support, AT/ATX mode control, Logistics and Forensic information, Flat Panel Control, General Purpose I2C, Failsafe BIOS (dual BIOS ), Watchdog Timer and Fan Control |
| Debug Header | 40-pin multipurpose flat cable connector. Use in combination with DB-40 debug module providing BIOS POST code LEDs, BMC access, SPI BIOS flashing, power testpoints, debug LEDs |
| Expansion Slots |
1x PCIe x1 slot compliant with PCI Express Base 2.0 specification 1x Mini-PCIe full card support with USB and SIM card socket 1x mSATA full card support with USB |
| Serial ATA | 2x SATA 3.0 Gbps port (one shared with mSATA) |
| USB |
4x USB 3.0 on rear I/O 2x USB 2.0 via front panel header 2x USB 2.0 via onboard header 1x USB 2.0 on Mini-PCIe and 1x USB 2.0 on mSATA slot KB/MS: 1x PS/2 internal header |
| KB/MS | 1x PS/2 internal header |
| Serial Ports |
1x RS-232 on rear I/O, 1x RS-232/422/485 on rear I/O 2x RS-232 and 2x RS-232/422/485 (with 5V/12V optional) support on internal headers |
| Digital IO | 10x GPI, 10x GPO on internal feature connector |
| eMMC | Optional soldered eMMC with extra space 8-64GB capacity |
| Audio Codec | Realtek ALC886 |
| Audio Interfaces |
Line-out, Mic-in on rear I/O 7.1 channel signals and S/PDIF output on internal header |
| Graphics Core | Intel Gen7 graphics core |
| VGA | Analog VGA up to 1920x1200 @ 60 Hz |
| HDMI | Supports HDMI 1.3a, up to 2560 x 1600 x 24bpp @ 60 Hz |
| LVDS | Single/Dual channel 24-bit up to 1920 x 1200 @ 60 Hz, support non-EDID type |
| Ethernet |
Controller: 2x Intel i211AT (MAC/PHY) Ethernet controller Interface: PCIe x1 bus Wake-on-LAN: Yes |
| Power |
Standard Input: ATX = 12V±5% / 5Vsb ±5% from internal header, AT = 12V±5% from internal header or external screw connector Peripheral Output: Onboard headers for fan and SATA power |
| Dimensions | 170 mm x 170 mm |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature |
Standard: 0°C to 60°C Extreme Rugged: -40°C + 85°C (build option, Atom E38xx series only) |
| Humidity |
5-90% RH operating, non-condensing 5-95% RH storage |
| Shock and Vibration |
IEC 60068-2-64 and IEC-60068-2-27 MIL-STD-202F, Method 213B, Table 213-I, Condition A and Method 214A, Table 214-I, Condition D |
| HALT | Thermal Stress, Vibration Stress, Thermal Shock and Combined Test |
| Model | Description |
| AmITX-BT-I-E3845 | Mini-ITX motherboard with Intel Atom E3845 processor at 1.91 GHz |
| AmITX-BT-I-E3827 | Mini-ITX motherboard with Intel Atom E3827 processor at 1.75 GHz |
| AmITX-BT-I-E3826 | Mini-ITX motherboard with Intel Atom E3826 processor at 1.46 GHz |
| AmITX-BT-I-E3825 | Mini-ITX motherboard with Intel Atom E3825 processor at 1.33 GHz |
| AmITX-BT-I-E3815 | Mini-ITX motherboard with Intel Celeron E3815 processor at 1.46 GHz |
| AmITX-BT-I-J1900 | Mini-ITX motherboard with Intel Celeron J1900 processor at 2.00 GHz |
| AmITX-BT-I-N2930 | Mini-ITX motherboard with Intel Celeron N2930 processor at 1.83 GHz |
| t2AmITX‑BT‑I‑E3845 | Intel BayTrail Mini ITX motherboard with Intel Atom E3845 at 1.91 GHz, ETT -40°C to +85°C incl. Rear I/O shield and cables for Power and SATA (without cooler/heatsink) |
| t2AmITX‑BT‑I‑E3826 | Intel BayTrail Mini ITX motherboard with Intel Atom E3826 at 1.46 GHz, ETT -40°C to +85°C incl. Rear I/O shield and cables for Power and SATA (without cooler/heatsink) |
| t2AmITX‑BT‑I‑E3827 | Intel BayTrail Mini ITX motherboard with Intel Atom E3827 at 1.75 GHz, ETT -40°C to +85°C incl. Rear I/O shield and cables for Power and SATA (without cooler/heatsink) |
| TPMMOD-2 | TPM 2.0 Module for ADLINK Mini-ITX Embedded board AmITX-Series |
| 32-20493-0000 | 4010-CJ CPU Cooler with Fan (0°C to 60°C) |
| 32-20510-0000 | CU-CJ CPU Passive Heatsink (0°C to 60°C) |
| 32-20494-0000 | 4020-CJ CPU Cooler with Fan (-40°C to 85°C) |
