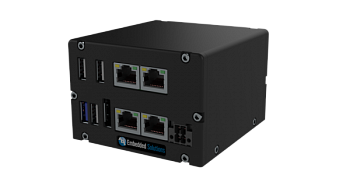

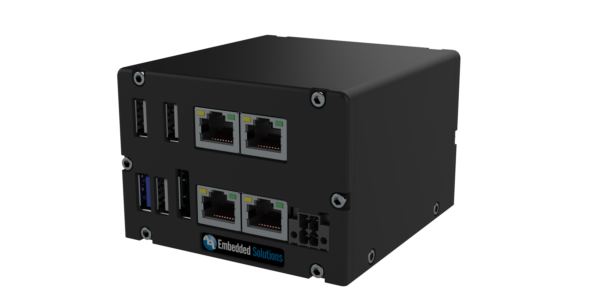

The ADLEPC-1520 is a rugged, compact industrial-grade chassis constructed from 6063 aluminum, with thick‑walled design and a fanless, conduction-cooled CPU for wider temperature operation. It features a durable anodized finish, flush-mounted screws and flexible mounting options. At only 2.3″ x 3.4″ x 3.7″, it is ideal for a variety of industrial applications and environments...whether on the factory floor or deployed in the external environments.
Modular I/O Expansion
The heart of the ADLEPC-1520 is a compact (75mm x 75mm) Intel E3800-series Atom CPU (ADL75S-E38XX) with a stackable expansion connector. This results in a very small 3.4″ x 3.7″ overall footprint, while providing application-specific features. The expansion connector features a number of interfaces including 2xPCIe, 2x USB, 1x SATA, SM-Bus, and 1x DisplayPort with standard expansion boards available.
Applications:
Industrial IoT (IIoT) network and cloud computing, Cyber security edge devices for networks, ICS and SCADA threat security, Secure networking (routing, traffic monitoring and gateways), intelligent machinery and equipment controllers, unmanned or autonomous vehicle mission / payload computing, wind turbine datalogging and collision avoidance, oil and gas IPC.
Technical specifications | |
Processors |
Intel Atom E3845 QC, 1.91GHz, 2MB, 10W TDP Intel Atom E3827 DC, 1.75 GHz, 1MB, 8W TDP |
TPM 2.0 | Via Intel Chipset PTT and BIOS |
Memory | Up to 4GB Soldered Down |
Storage | 2x M.2 Key B 2242 SATA II SSD |
Input / Output | 1x DisplayPort, 1x USB 2.0, 1x USB 3.0, 2x 10/100/1000 LAN |
Power |
Vin = 20-30Vdc; Options for 12-24Vdc and 24-36Vdc. Custom power options available via custom expansion board. |
Operating System | Windows and Linux including Ubuntu 16.04 and RHEL. |
I/O Expansion | Available via standard and custom mezzanine board options. See ordering table or contact sales. |
Dimensions | 2.3” x 3.4” x 3.7” (58mm x 86mm x 94mm) |
Weight | <= 1.5lb (680 grams) |
Environmental and physical specifications |
|
---|---|
Operating Temperature | Standard: 0°C to +70°C; Optional -40°C to +85°C Screening (requires cooling plate). |
Model | Description |
ADLEPC-1520-E3845 | ADLEPC-1520 Chassis with Intel E3845 Atom Processor; Quad-Core, 1.91 GHz, 2MB Cache, 10W TDP |
ADLEPC-1520-E3827 | ADLEPC-1520 Chassis with Intel E3827 Atom Processor; Dual-Core, 1.75 GHz, 1MB Cache, 8W TDP |
ADLEPC-1520-A039 | Adds 2x LAN, 2x USB 2.0, 1x M.2 SATA SSD w/ Front Panel |
ADLEPC-1520-A039U | Adds 2x LAN, 2x USB 2.0, 1x UPS Module 2/ Front Panel |
ADLEPC‑1520‑CUSTOM | Customer-Specific I/O and Power Board Development Services |
ADL-ET | Extended Temperature Chamber Testing (-40 - 85C) |
ADLEPC-PWR | AC/DC 24V Adapter with wall plug |
ADL-CC | Conformal Coating For High Humidity |
ADL-UF | BGA Underfill for High Shock and Vibration or Rapid Thermal Transients |
