Mimic
NVIDIA Jetson AGX Xavier to TX2/TX2i Adapter
Vendor:Connect Tech
- Details
- Specification
- Order information
- Install NVIDIA Jetson AGX Xavier on any NVIDIA Jetson TX2/TX2i Carrier Board
- Wide range of Jetson AGX Xavier interfaces passed to Jetson TX2/TX2i carrier
- Dimensions: 92mm x 105mm (3.62” x 4.13”)
- Operating temperature: -40°C to +85°C (-40°F to +185°F)

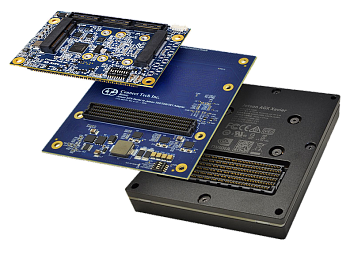

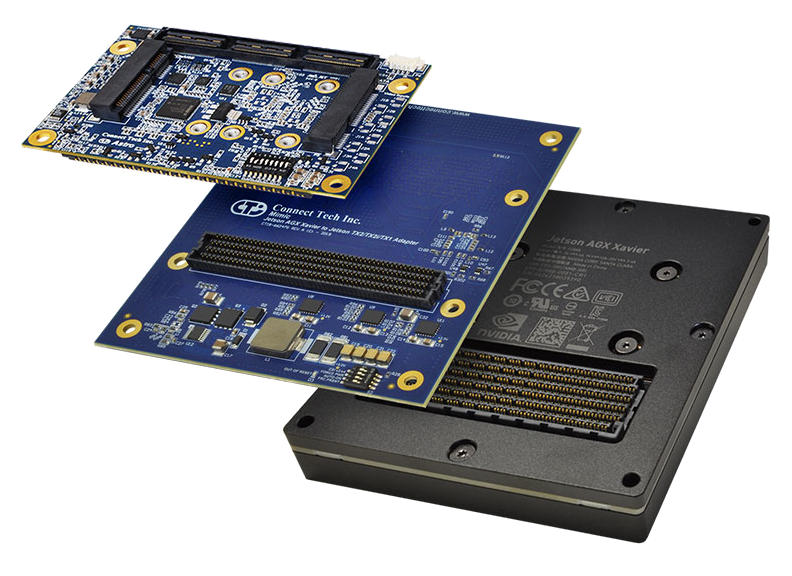

The Mimic Adapter from Connect Tech allows the NVIDIA Jetson AGX Xavier module to be installed onto an NVIDIA Jetson TX2/TX2i carrier. The Mimic Adapter is ideal for NVIDIA Jetson users who want to easily compare performance metrics between their existing TX2/TX2i designs to the new Jetson AGX Xavier.
Mimic Adapter allows users to immediately gain access to Jetson AGX Xavier’s impressive 20x compute performance increase and 10x energy efficiency improvement from the Jetson TX2. This enables a giant leap forward in capabilities for autonomous machines and edge devices.
| Technical specifications | |
| Adapter Function | Allows the NVIDIA Jetson AGX Xavier module to be installed on to any NVIDIA Jetson TX2/TX2i Carrier Board |
| NVIDIA GPU SoC Module Compatibility | NVIDIA Jetson AGX Xavier |
| Carrier Board Compatibility | Any Carrier Board designed for NVIDIA Jetson TX2/TX2i |
| Jetson Xavier Interfaces Passed to TX2/TX2i Carrier |
3x USB 2.0 3x USB 3.0 3x PCIe x1 1x SATA 6x 2-lane CSI / 3x 4-lane CSI 2x eDP/DP/HDMI 1x Gigabit Ethernet 1x SD Card 2x CAN 4x I2C 4x UART 3x SPI GPIO and Misc system control available on TX2 |
| Ethernet | RGMII 1GBE PHY contained on Adapter |
| Input Power | Adapter automatically regulates and distributes the TX2/TX2i Carrier Board VDD_IN to the Xavier SYS_VIN_HV/MV |
| Weight | 68 g |
| Dimensions | 92mm x 105mm |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| AGX001 | Mimic – NVIDIA Jetson AGX Xavier to TX2/TX2i Adapter |
