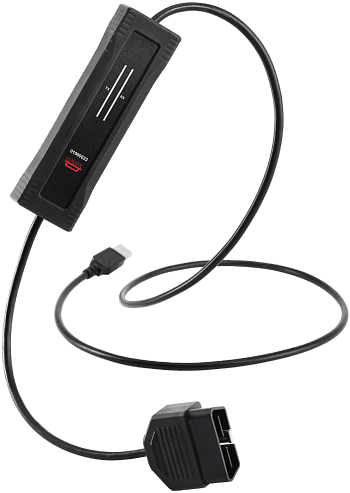

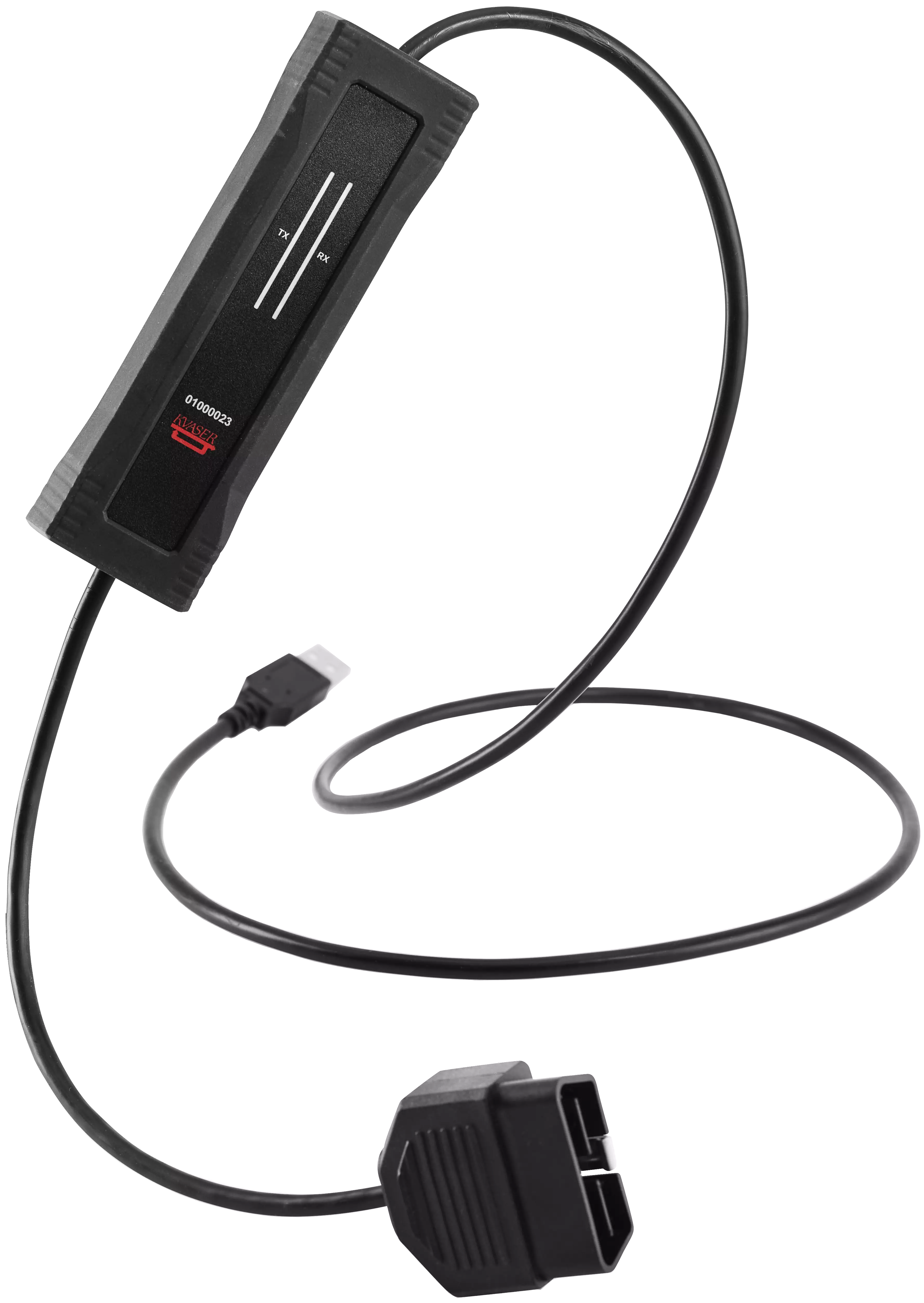

U100P-X3
Single-channel CAN/CAN FD to USB interface with reinforced galvanic isolation
Vendor:Kvaser AB
- Details
- Specification
- Order information
- Supports CAN FD, up to 8 Mbit/s
- Reinforced galvanic isolation
- IP67 rated housing
- Operating temperature: -40 to +85°C
The Kvaser U100P-X3 is a robust, single-channel CAN/CAN FD to USB interface with reinforced galvanic isolation (Tested according EN 60335) that squarely addresses the needs of the evolving automotive development market.
Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this is the first in a new range of interfaces that is also suited to rugged applications in marine, industrial, heavy duty vehicle and heavy industries.
The Kvaser U100P is also available with 9-pin D-SUB, J1939 or M12 CAN connectors.
| Technical specifications | |
| Channels | 1 |
| CAN bit rate | 10 kbit/s to 1 Mbit/s |
| CAN FD bit rate | Up to 8Mbit/s |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Timestamp resolution | 1 µs |
| Error Frame Detection | Yes |
| Error Frame Generation | Yes |
| MagiSync | Yes |
| Silent Mode | Yes |
| Current consumption | Typical 250 mA |
| CAN Transceivers | ADM3055E |
| Interfaces | USB |
| Connectors | OBD-II /J1962 |
| Galvanic isolation | Reinforced Galvanic Isolation. (Tested according EN 60335-1:2012 paragraph 13, 5000VAC rms applied for 60 seconds) |
| Operating systems | Linux, Win 7, Win 10, Win 8 |
| Material | Glass Fiber Reinforced PA6 |
| Dimensions | 38 x 128 x 26 mm |
| Weight | 185 g |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40 to +85°C |
| Dust/moisture | IP67 rated housing |
| Certificates | CE, RoHS |
| Model | Description |
| 73-30130-01271-4 | Kvaser U100P-X3 |
