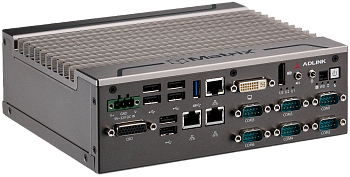

ADLINK’s new Matrix MXE-1400 series of rugged quad‑core fanless computers, feature the latest generation of Intel Atom E3845 processors, delivering outstanding performance with minimum power consumption.
The MXE-1400 series accommodates rich I/O interfaces in a compact system size, including DisplayPort, DVI-I (with both DVI and VGA signals), three GbE by Intel network interface controllers, six USB 2.0, one USB 3.0 with dedicated bandwidth, 8 isolated DI/O, and six COM ports, four of which are BIOS-configurable among RS-232/422 and 485 with auto flow. In addition, with a 2.5″ SATA drive bay and CFast port, easy, versatile connection to a wide range of applications is enabled. Dual mini PCIe slots and USIM socket empower the MXE- 1400 as a communications hub for a variety of wireless connections, such as BT/WiFi and 3G/LTE.
Leveraging proprietary mechanical engineering, the MXE-1400 series continues to offer all the popular features of the Matrix E series, including cable-free construction, wide operating temperature ranges, and 5 Grms vibration resistance, having undergone, like all ADLINK Matrix devices, rigorous testing for operational verification.
Combining superior processor performance, wireless capability, and rich, scalable I/O in a compact and robust package, the ADLINK MXE-1400 is an ideal choice for a wide range of applications supporting intelligent transportation, in-vehicle multimedia, and surveillance and factory automation applications.
Technical specifications | |
System |
|
---|---|
Processor | Quad-Core Intel Atom SoC processor E3845 |
Memory | DDR3L1600 2 GB (up to 8 GB) |
I/O Interface |
|
Display Port | 1x DisplayPort |
DVI / VGA | 1x DVI-I |
Ethernet | 3x GbE (Intel I211) |
Serial | 6x COM (2x RS-232 + 4x RS-232/422/485) |
USB | 6x USB 2.0 + 1x USB 3.0 + 1 internal USB 2.0 dongle |
DIO | Isolated 8 DI + 8 DO |
Audio | Mic-in / Line-out |
Mini PCIe | 2x PCIe mini card slot (one full size, another half size) |
USIM | 1x USIM Slot |
Manageability |
|
WDT | Watch Dog Timer supported |
SEMA | SEMA support with BMC |
Power Supply |
|
DC Input | 9-32VDC |
AC Input | Optional 80 W AC/DC adapter |
Storage Device |
|
SATA Storage | 1x 2.5" SATA removable drive bay |
CompactFlash | 1x CFast socket |
Mechanical |
|
Dimension | 210 (W) x 170 (D) x 70 (H) mm |
Weight | 2 kg (4.42 lbs) |
Mounting | Wallmount kit |
Environmental and physical specifications |
|
Operating Temperature |
Standard: 0°C to +50°C (32˚F to 122˚F) Extended temperature option (w/ industrial SODIMM & SSD): -40°C to +70°C (-40˚F to 158˚F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Humidity | ~95% @ 40°C (104°F) (non-condensing) |
Vibration |
Operating: 5 Grms, 5-500 Hz, 3 axes (w/SSD) Operating: 0.5 Grms, 5-500 Hz, 3 axes (w/ HDD) |
Shock |
Operating 100G, half sine 11 ms duration w/ SDD; Operating 20G, half sine 11ms w/ HDD |
ESD | Contact ±6KV, Air ±10KV |
EMC | CE & FCC Class A |
Safety | UL[by CB] |
Model | Description |
MXE-1401 | Intel E3845 quad-core SoC, DVI-I + DP, 1x USB 3.0, 6x USB 2.0, 3x GbE, 6x COM, 8x DIO, 9-32Vdc, 2GB DDR3L memory |
MXE-1401/M4G | Intel E3845 quad-core SoC, DVI-I + DP, 1x USB 3.0, 6x USB 2.0, 3x GbE, 6x COM, 8x DIO, 9-32Vdc, 4GB DDR3L memory |
MXE-1401/M8G | Intel E3845 quad-core SoC, DVI-I + DP, 1x USB 3.0, 6x USB 2.0, 3x GbE, 6x COM, 8x DIO, 9-32Vdc, 2x 4GB DDR3L memory |
MXE‑1401/ETM4G | Intel E3845 quad-core SoC, DVI-I + DP, 1x USB 3.0, 6x USB 2.0, 3x GbE, 6x COM, 8x DIO, 9-32Vdc, ET 4GB DDR3L memory |
