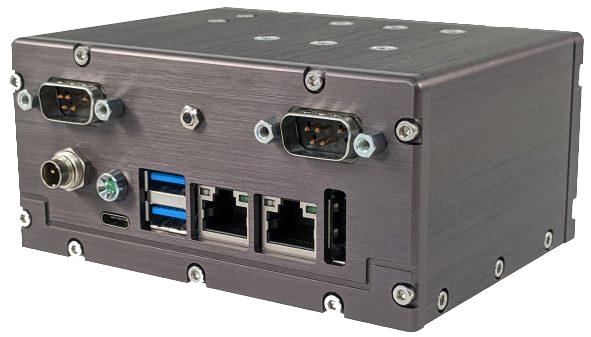

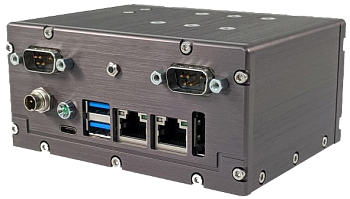

The ADLEPC-1700 is a rugged, compact industrial-grade computer constructed from 6063 aluminum, with thick‑walled design and a fanless, conduction-cooled CPU for industrial temperature operation. It features a durable annodized finish, flush-mounted screws, and flexible mounting options. The compact size and light weight make it ideal for a variety of industrial applications and environments, whether on the factory floor or in rugged external conditions.
Customizable High Performance
At the heart of the ADLEPC-1700 is a compact Intel Atom E3900-series SBC with a host of onboard and mPCIe expansion features. The compact chassis design has a very small footprint at only a 3.3″ x 4.6″, the approximate size of an index card, making it ideal for embedded use in IIot applications or retrofitting into high-value assets and infrastructure such as edge devices for power grid protection, oil and gas, unmanned applications, and more.
Custom I/O and Power
The EPC-1700 is highly customizable and can easily be adapted for particular customer needs including Wi-Fi, CAN, RS232, military-grade power, MIL-STD-1553, ARINC, and much more.
ADL Embedded Solutions, Inc. offers full turnkey system design services and is well versed at working collaboratively with customers to conceptualize and manufacture full custom EPC-1700 solutions or even full-custom system solutions. Contact us for details.
Technical specifications | |
Processors |
Intel Atom x7-E3950 Quad, 1.60 GHz, 2MB cache, 12W TDP, Passmark Performance ~ 2150 Intel Atom x5-E3940 Quad, 1.60 GHz, 2MB cache, 9.5W TDP, Passmark Performance ~ 1950 Intel Atom x5-E3930 Dual, 1.30 GHz, 2MB cache, 6.5W TDP, Passmark Performance ~ 1100 |
Memory | Up to 8GB Soldered-Down LPDDR4 at 2400 MT/s |
Security | TPM 2.0 |
Storage |
1x SATA III Port for SATADOM capacity up to 128GB 1x mSATA SATA III Socket with capacity up to 512GB |
Fixed Front-Side I/O and Features |
1x DisplayPort, DP 1.2, 4096 x 2160 @60Hz 2x USB 3.0 2x i210/i211 Ethernet USB-C Power Ports |
Onboard I/O and Features |
1x 802.11ac 2x BIOS-Selectable RS232/422/485; Linux-Only 2x USB 2.0 HD Audio 4-bit 3.3V GPIO |
Expansion | 1x Shared mPCIe/mSATA Socket for Optional CAN, 802.11xx, 3G/4G Modem, 4x RS232/422/485, DIO, MIL-STD-1553, ARINC, and other mPCIe modules |
Mounting | DIN Rail, VESA 50mm x 50mm |
Dimensions | 2.1” x 4.6” x 3.3” (54mm x 116mm x 85mm) |
Nominal Weight | ~ 1.3lb |
Environmental and physical specifications |
|
---|---|
Operating Temperature |
Standard Temperature = -40°C to 70°C Note: Max temperature 75°C with conduction cooling |
Model | Description |
ADLEPC-1702 | Intel Atom x5-E3930 Dual, 1.30 GHz, 2MB cache, 4 GB DRAM, 6.5W TDP |
ADLEPC-1704 | Intel Atom x5-E3940 Quad, 1.60 GHz, 2MB cache, 4GB DRAM, 9.5W TDP |
ADLEPC-1706 | Intel Atom x7-E3950 Quad, 1.60 GHz, 2MB cache, 8GB DRAM, 12W TDP |
ADLEPC-1700 Custom Configurations | Call us for custom configurations featuring optional onboard and mPCIe expansion I/O |
SATADOM 64GB | 64GB MLC SATAIII SATADOM; Ext. Temp |
SATADOM 128GB | 128GB MLC SATAIII SAADOM; Ext. Temp |
mSATA storage | SATAIII mSATA modules up to 512GB; uses mPCie/mSATA socket |
ADLEPC-1700-PWRFL | External power via industrial circular connector with 18” flying leads |
ADLEPC-1700-PWR | 60W USB-C Wall Adapter |
mPCIe WiFi | Optional 802.11ac WiFi with 2ea SMA antenna ports |
EPC1700-Ant | 2ea Direct-attached WiFi antennas |
mPCIe 4x COM | Optional mPCIe RS232/422/485 up to 4 ports; Windows and Linux drivers |
mPCie Peak CAN | Optional Peak Dual CAN 2.0A, 2.0B |
mPCIe i210 ENET | Optional Intel i210 Ethernet LAN port |
EPC1700-PSU | Wide-Input 9VDC to 36VDC discrete power supply via circular connector |
EPC1700-GPIO | OptIonal DB9 8bIt GPIO |
DIN Rail Set | 1 set of ADLEPC1700/1600 DIN Rails |
EPC1700-BAT | EPC1700 RTC Battery |
