cPCIS-6418U
4U 8-slot CompactPCI System with Redundant Power Supplies
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Standard 6U CompactPCI and PICMG 2.5 H.110 CT Bus
- PICMG 2.1 Hot Swap compliant 64-bit 8-slot CompactPCI backplane with P3 & P5 rear I/O
- Dual AC power inlets (optional DC-in)
- Operating temperature: 0°C to +50 °C

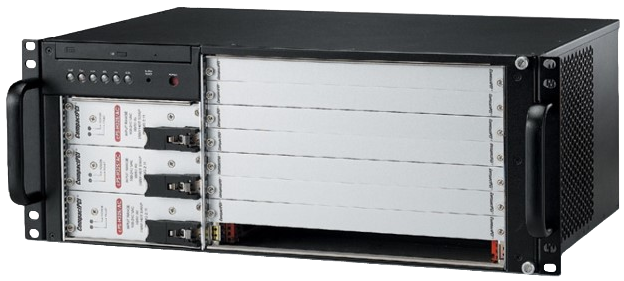

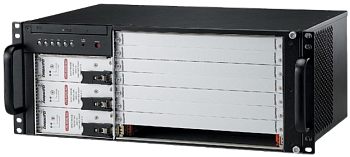

The cPCIS-6418U Series Subsystem is designed for maximum density and has 8 horizontal slots for 6U cPCI boards with 80mm RTMs. The chassis is 4U in height and standard 19" rack mount width.
The cPCIS-6418U provides 2+1 hot swappable 500W+250W redundant power supplies with universal AC input. It has a PICMG 2.1 Hot Swap compliant 64-bit 8-slot CompactPCI backplane with PICMG 2.5 H.110 CT Bus (cPCIS-6418U/N110 does not support CT Bus).
A built-in alarm board monitors chassis temperature, voltage and fan status and provides an RS-232 interface on the rear panel.
| Technical specifications | |
| Enclosure |
EIA RS-310C 19” 4U high rackmount enclosure Coated metal plate outer covering |
| Form Factor | 6U CompactPCI |
| CompactPCI Standards | 2.0 R3.0, 2.1 R2.0, 2.5 R1.0 |
| Backplanes |
cBP-6418U: 8-slot 64-bit 6U cPCI CT bus backplane cBP-6418U/N110: 8-slot 64-bit 6U cPCI non CT bus backplane |
| Power Supply |
Supports up to three in-rack 3U cPCI 8HP power modules Supports current sharing on 5 V, 3.3 V, and 12 V PICMG 2.11 47-pin power interface Power module: cPS-H325/AC (250 W each x3 redundant) cPS-H325/48 (DC48V 250 W redundant each) |
| Basic Alarm Module |
Monitors inner chassis temperature and fan status Abnormal status will generate alarm and LED warning Alarm reset LED indicates status of 5 V, 3.3 V, 12 V, and -12 V |
| Cooling System |
Removable left exhaust fan • Total fans: 1 • Fan type: DC brushless motor • Rated voltage: 12 V • Dimensions: 120 x 120 x 25 (mm, W x H x D) • Maximum Air flow: 150 CFM • Rated speed for each fan: 4000 ±250 RPM • Rated power for each fan: 17.4 W Exhaust fan on rear panel: • Total fans: 1 • Fan type: DC brushless motor • Rated voltage: 12 V • Dimensions: 92 x 92 x 38 (mm,W x H x D) • Maximum Air flow: 110.18 CFM • Rated speed for each fan: 4800 ±250 RPM • Rated power for each fan: 12 W Hot-swappable right side intake fans: (2+2 fans) • Total fans: 4 • Fan type: DC brushless motor • Rated voltage: 12 V • Dimensions: 80 x 80 x 15 (mm,W x H x D) • Maximum Air flow: 42.73 CFM • Rated speed for each fan: 4000 ±100 RPM • Rated power for each fan: 3.24 W |
| Drive Bay | One slim type optical drive |
| Dimensions | 482.6 x 177.0 x 346.35 (mm, W x H x D, w/ handle) |
| Weight | 14.5 kg/31.9 lbs (including 250 W ATX power supply and backplane) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | 0°C to +50°C |
| Storage temperature | -20°C to +80°C |
| Humidity | 5% to 95%, non-condensing |
| Shock | 15 G peak-to-peak, 11 ms duration, non-operation |
| Vibration |
Non-operation: 1.88 Grms, 5-500 Hz, each axis Operation: 0.5 Grms, 5-500 Hz, each axis, tested with 2.5” HDD NEBS: Designed for NEBS Level 3 |
| Model | Description |
| cPCIS‑6418U/AC/N110/SDVD | 6U CPCI 4U High Sub-system 8-slot, 64-bit, non H.110, RIO, SATA DVD, 3x PSU, Dual AC input |
| cPCIS‑6418U/AC/SDVD | 6U CPCI 4U High Sub-system 8-slot, 64-bit, RIO, SATA DVD, 3x PSU, Dual AC input |
| cPCIS‑6418U/DualAC/WM | 6U CPCI 4U High Sub-system 8-slot, 64-bit, RIO, CD-ROM, 3x PSU, Dual AC inlet BOX, web access alarm board |
| cPCIS‑6418U/2AC/SDVD | 6U CPCI 4U High Sub-system 8-slot, 64-bit, RIO, SATA DVD, 2x PSU, Dual AC input |
| cPCIS‑6418U/AC3/VA(EA) | 4U 8-slot 64-bit/66MHz CompactPCI Subsystem with AC input AT PSU (3x 250W), 1x SATA DVD & Buzzer, RS-232 Alarm Board |
| cPCIS‑6418U/DC/SDVD | 4U 8-slot 64-bit/66MHz CompactPCI Subsystem with 2x DC input AT PSU (3x 250W), 1x SATA DVD & Buzzer, RS-232 Alarm Board |
| cPCIS‑6418U/DC4 | 6U CPCI 4U High Sub-system 8-slot, 64-bit, RIO, CD-Rom, 3x DC48V PSU, Dual DC input terminal |
