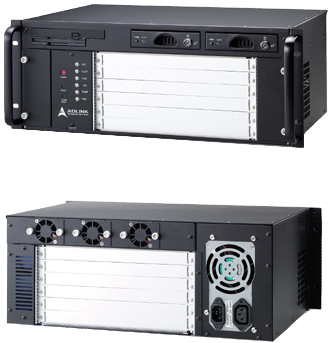

cPCIS-6400X
4U 5-slot CompactPCI Chassis with 400 W Power Supply
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Built-in 400 W AC-input ATX power supply
- Dual removable SATA HDD racks
- Redundant cooling architecture
- Operating temperature: 0°C to +55 °C
The cPCIS-6400U/6400X Series subsystems are designed for 6U cPCI boards with 80mm RTMs. The chassis is 4U in height and standard 19″ rack mount width.
The cPCIS-6400U provides 2+1 hot swappable 500W+250W redundant power supplies with universal AC input, while the cPCIS-6400X has a built-in 400W AC-input ATX power supply with cooling fan. Both series have PICMG 2.1 Hot Swap compliant 32/64-bit 5-slot CompactPCI backplanes and a PICMG 2.5 H.110 CT Bus.
| Technical specifications | |
| Enclosure |
EIA RS-310C 19” 4U high rackmount enclosure Coated metal plate outer covering |
| Form Factor | 6U CompactPCI |
| CompactPCI Standards | 2.0 R3.0, 2.1 R2.0, 2.5 R1.0 |
| Backplanes | cBP-6405R: 5-slot 64-bit 66 MHz 6U cPCI CT Bus Backplane |
| Basic Alarm Module |
Monitors inner chassis temperature and fan status Abnormal status will generate alarm and LED warning Alarm reset LED indicates status of 5 V, 3.3 V, 12 V, and -12 V |
| Cooling System |
Front-access hot-swappable fan tray for intake: • 12 V DC brush-less, dual-ball bearing • One fan for intake and one fan for ventilation with 51 CFM each • Rated speed for each fan: 3600 ±250 RPM • Rated power for each fan: 2.8 W Rear-access hot-swappable fan modules for drive bays: • 12 V DC brush-less, VAPO bearing • Three 10.8 CFM fan modules for ventilation • Rated speed for each fan: 8200 ±1000 RPM • Rated power for each fan: 1.6 W |
| Drive Bay |
Built-in one slim type optical drive Dual removable 3.5” SATA HDD racks |
| Dimensions | 482.6 x 177.0 x 350.6 (mm, W x H x D, w/ handle) |
| Weight | 14.5 kg/32 lbs (including power supply and backplane) |
|
Power Supply |
|
|---|---|
| APS940XA | 400 W ATX power supply with cooling fan |
| AC Input | Auto range, 90-130 V AC and 180-260 V AC 47-63 Hz |
| DC Output |
35 A @ +5 V, 25 A @ +3.3 V, 30 A @ +12 V, 1A @ -12 V (+5 Vsb and -5 V are not used in cPCI system) The total output current of the 5 V & 3.3 V source must not exceed 45 A Maximum total output for all DC: 400 W Efficiency: 65% at 115 V, full load |
| Protection |
Over load protection: 110%-140% Over voltage protection on +5 V Short circuit protection: each voltage output Over temperature protection: 70 |
| De-rating |
De-rating temperature: 40 De-rating rate: 20 |
| Certifications |
UL 1950/ CSA22.2 No.234 TUV EN-60950 “B” IEC-801-2, 3, 4, 5 FCC part 15 Class A, CISPR 22 (EN55022) |
|
Environmental and physical specifications |
|
| Operating temperature | 0°C to +55°C |
| Storage temperature | -20°C to +80°C |
| Humidity | 5% to 95%, non-condensing |
| Shock | 15 G peak-to-peak, 11 ms duration, non-operation |
| Vibration |
Non-operation: 1.88 Grms, 5-500 Hz, each axis Operation: 0.5 Grms, 5-500 Hz, each axis, tested with 2.5” HDD NEBS: Designed for NEBS Level 3 |
| Model | Description |
| cPCIS‑6400X | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, CD ATX 400W, IDE Swap Rack |
| cPCIS‑6400X/32 | 6U CPCI 4U High Sub-system 5-slot, 32-bit, RIO, CD ATX 400W, IDE Swap Rack |
| cPCIS‑6400XA/N110/SDVD | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, SATA DVD-RW, ATX 400W, SATA Swap Rack with Non H.110 backplane cBP-6405R/N110 |
| cPCIS‑6400XA/NFD | 6U CPCI 4U High Sub-system ATX 400W, SATA Swap Rack, slim DVDROM, without floppy |
| cPCIS‑6400XA/NP/NCD/NFDD | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, SATA Swap Rack without PSU, FDD, CDROM |
