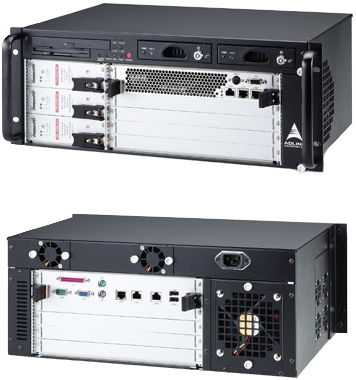

cPCIS-6400U
4U 5-slot CompactPCI Chassis with Redundant Power Supplies
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 2 + 1 hot swappable 500 W + 250 W redundant power supplies with universal AC input
- Dual removable SATA HDD racks
- Redundant cooling architecture
- Operating temperature: 0°C to +55 °C
The cPCIS-6400U/6400X Series subsystems are designed for 6U cPCI boards with 80mm RTMs. The chassis is 4U in height and standard 19″ rack mount width.
The cPCIS-6400U provides 2+1 hot swappable 500W+250W redundant power supplies with universal AC input, while the cPCIS-6400X has a built-in 400W AC-input ATX power supply with cooling fan. Both series have PICMG 2.1 Hot Swap compliant 32/64-bit 5-slot CompactPCI backplanes and a PICMG 2.5 H.110 CT Bus.
| Technical specifications | |
| Enclosure |
EIA RS-310C 19” 4U high rackmount enclosure Coated metal plate outer covering |
| Form Factor | 6U CompactPCI |
| CompactPCI Standards | 2.0 R3.0, 2.1 R2.0, 2.5 R1.0 |
| Backplanes |
cBP-6415U: 5-slot 64-bit/66 MHz 6U CT Bus Backplane cBP-6105R: 5-slot 32-bit/33 MHz CT Bus Backplane |
| Power Supply |
Supports up to 3 in-rack 3U cPCI 8HP power modules Supports current sharing on 5 V, 3.3 V, and 12 V PICMG® 2.11 47-pin power interface Power module: cPS-H325/AC (250W each x3 redundant) |
| Basic Alarm Module |
Monitors inner chassis temperature and fan status Abnormal status will generate alarm and LED warning Alarm reset LED indicates status of 5 V, 3.3 V, 12 V, and -12 V |
| Cooling System |
Front-access hot-swappable fan tray for intake: • 12 V DC brush-less, precise dual-ball bearing • One 150 CFM fan for in-take • Rated speed for each fan: 4000 ±250 RPM • Rated power for each fan: 17.4 W Removable fan module for ventilation: • 12 V DC brush-less, VAPO bearing • Four 9.46 CFM fans for ventilation • Rated speed for each fan: 8000 ±1000 RPM • Rated power for each fan: 1.8 W Rear-access hot-swappable fan modules for drive bays: • 12 V DC brush-less, VAPO bearing • Two 10.8 CFM fan modules for ventilation • Rated speed for each fan: 8200 ±1000 RPM • Rated power for each fan: 1.6 W Rear-access hot-swappable fan modules for ventilation: • 12 V DC brush-less, VAPO bearing • One 110 CFM fan for ventilation • Rated speed for each fan: 4800 ±250 RPM • Rated power for each fan: 12 W |
| Drive Bay |
Built-in one slim type optical drive Dual removable 3.5” SATA HDD racks |
| Dimensions | 482.6 x 177.0 x 350.6 (mm, W x H x D, w/ handle) |
| Weight | 14.5 kg/32 lbs (including 280 W ATX power supply and backplane) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | 0°C to +55°C |
| Storage temperature | -20°C to +80°C |
| Humidity | 5% to 95%, non-condensing |
| Shock | 15 G peak-to-peak, 11 ms duration, non-operation |
| Vibration |
Non-operation: 1.88 Grms, 5-500 Hz, each axis Operation: 0.5 Grms, 5-500 Hz, each axis, tested with 2.5” HDD NEBS: Designed for NEBS Level 3 |
| Model | Description |
| cPCIS‑6400UA/AC | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, CD, SATA Swap Rack, with 3x 47-pin Universal AC input PSU |
| cPCIS‑6400UA/AC/SDVD | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, SATA DVD, SATA Swap Rack, without FDD with 3x 47-pin Universal AC input PSU |
| cPCIS‑6400UA/AC/SDVD/WM | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, SATA DVD SATA Swap Rack, with 3x 47-pin Universal AC input PSU, Web access alarm board |
| cPCIS‑6400UA/AC/WM | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, CD, SATA Swap Rack, with 3x 47-pin Universal AC input PSU, Web access alarm board |
| cPCIS‑6400UAD/2AC | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, SATA DVD-RW & Swap Rack, W/ 2x AC PSU 250W installed, Dual AC-Inlet type |
| cPCIS‑6400UAD/2AC/SDVD | 6U CPCI 4U high Sub-system 5-slot, 64-bit, RIO, SATA DVD-RW, SATA Swap Rack, 2x 250W AC PSU and dual AC-Inlets |
| cPCIS‑6400U | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, CD, FDD IDE Swap Rack, for 47-pin PSU (w/o PSU installed) |
| cPCIS‑6400U/32 | 6U CPCI 4U High Sub-system 5-slot, 32-bit, RIO, CD, IDE Swap Rack, for 47-pin PSU (w/o PSU installed) |
| cPCIS‑6400U/32/AC | 6U CPCI 4U High Sub-system 5-slot, 32-bit, RIO, CD, IDE Swap Rack, with 3x 47-pin Universal AC input PSU |
| cPCIS‑6400U/AC | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, CD, IDE Swap Rack, with 3x 47-pin Universal AC input PSU |
| cPCIS‑6400U/DC4 | 6U cPCI 4U High Sub-system, 5-slot,64-bit,RIO,CD,IDE Swap Rack, W/ DC 48V input, 3x 250W PSU |
| cPCIS‑6400US/AC | 6U CPCI 4U High Sub-system with SCSI Swap Rack, CD-ROM, 3x 47-pin RPSU and 64-bit SYS BP |
| cPCIS‑6400US/DC2 | 6U CPCI 4U High Sub-system SATA Swap Rack, IDE DVD-ROM RPSU DC 24V, 64-bit SYS BP |
| cPCIS‑6400USD/2AC | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, CD, SCIS Swap Rack, with 2x cPCI PSU, Dual AC-Inlet |
| cPCIS‑6400USS/SDVD/WM | 6U CPCI 4U High Sub-system 5-slot, 64-bit, RIO, SAS Swap RackSATA DVD, without FDD, with 3x 47-pin PSU, Dual inlet, Web access alarm board |
