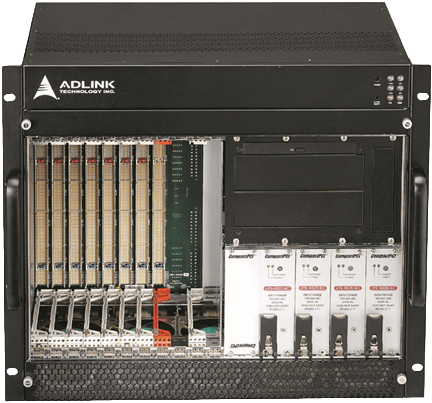

cPCIS-3330
9U 8-slot CompactPCI Chassis with Redundant Power Supplies
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Standard 6U CompactPCI and PICMG 2.5 H.110 CT Bus
- PICMG 2.1 hot swap compliant 32-bit or 64-bit 8-slot CompactPCI backplane with P3 & P5 rear I/O
- 3+1 hot swappable 750 W + 250 W redundant power supplies with universal AC input
- Operating temperature: 0˚C to +55˚C (max.)
The cPCIS-3330 Series is a 19″ 8-slot 6U CompactPCI Subsystem ideally suited to Network Equipment Providers, Computing Telephony Integrators and Voice over IP applications. This flexible and reliable development platform with optimized I/O and storage provides the best solution for equipment manufacturers and system integrators and shortens time-to-market for fast growing business revenues.
The cPCIS-3330 provides scalability up to 7 peripheral slots with either 32-bit/33MHz or 64-bit/33MHz PCI and H.110 CT busses, redundant cooling system (5+5 front access hot swappable fans), 750W + 250W redundant PICMG 2.11 cPCI power supply, two 5.25″, one 3.5″ drive bays, and one slim type CD-ROM drive.
| Technical specifications | |
| Enclosure |
EIA RS-310C 19” 9U high rackmount enclosure Coated metal plate outer covering Guarded power switch and reset button |
| Form Factor | 6U CompactPCI |
| CompactPCI Standards | 2.0 R3.0, 2.1 R2.0, 2.5 R1.0, 2.9 R1.0, 2.11 R1.0 |
| Backplanes |
cBP-6108R or cBP-6408R cPCI Bus: 32-bit/33 MHz (cBP-6108R), 64-bit/33 MHz (cBP-6408R) 1x system slot 7x peripheral slots H.110 CT Bus: Comply with all peripheral slots Rear I/O: All slots support P3, P4, P5 rear I/O with AB-type shroud V (I/O): 3.3 V or 5 V (default) selectable Power Input: ATX connector x 3, DC screw terminals |
| Power Supply |
Supports current sharing on 5 V, 3.3 V, and 12 V PICMG 2.11 47-pin power interface Power module: cPS-H325/AC x4 or cPS-H325/DC4 x4 (750 W+250 W redundant) Max. Load +5 V: 132 A +3.3 V: 132 A +12 V: 22 A -12 V: 4 A Min. Load +5 V: 6 A |
| Alarm Module |
LEDs indicate status of 5 V, 3.3 V Basic Alarm: 12 V, and -12 V, fan, temperature Abnormal status will generate alarm and LED warning Alarm reset |
| Drive Bay | Two 5.25”, one 3.5”, one slim-type optical drive bays |
| Cooling System |
Five fans for front-access intake: Rated speed for each fan: 4000 ±500 RPM Rated power for each fan: 2.64 W Maximum Air Flow: 48.2 CFM Five fans for front-access intake: Rated speed for each fan: 4000 ±500 RPM Rated power for each fan: 2.64 W Maximum Air Flow: 48.2 CFM Five fans for front-access intake: Rated speed for each fan: 4000 ±500 RPM Rated power for each fan: 2.64 W Maximum Air Flow: 48.2 CFM Five fans for front-access intake: Rated speed for each fan: 4000 ±500 RPM Rated power for each fan: 2.64 W Maximum Air Flow: 48.2 CFM Two fans for rear-access ventilation: Rated speed for each fan: 2800 ±250 RPM Rated power for each fan: 2.9 W Maximum Air Flow: 49 CFM |
| Dimensions | 483.2 x 399 x 339.1 (mm, W x H x D, w/ handle) |
| Weight | Weight: 24.5 kg/53.9 lbs (including redundant power supply and backplane only) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | 0°C to +55°C |
| Storage temperature | -20°C to +80°C |
| Humidity | 5% to 95%, non-condensing |
| Shock | 15 G peak-to-peak, 11 ms duration, non-operation |
| Vibration |
Non-operation: 1.88 Grms, 5-500 Hz, each axis Operation: 0.5 Grms, 5-500 Hz, each axis, tested with 2.5” HDD NEBS: Designed for NEBS Level 3 |
| Model | Description |
| cPCIS‑3330/64/DualAC/D500 | 9U 64-bit/66MHz CompactPCI Subsystem with 2x AC input AT PSU (4x 250W), 3.5" HDD Drive Bay, 2x 5.25" HDD Drive Bays & Basic Alarm Board |
| cPCIS‑3330/64/DualAC | 9U 64-bit/66MHz CompactPCI Subsystem with 2x AC input AT PSU, 3.5" HDD Drive Bay, 2x 5.25" HDD Drive Bays & Basic Alarm Board |
| cPCIS‑3330/DC4 | 9U 64-bit/66MHz CompactPCI Subsystem with DC input AT PSU (4x 250W), 3.5" HDD Drive Bay, 2x 5.25" HDD Drive Bays & Basic Alarm Board |
| cPCIS‑3330/64/AC/2PSU | 9U 64-bit/66MHz CompactPCI Subsystem with AC input AT PSU (2x 250W), 3.5" HDD Drive Bay, 2x 5.25" HDD Drive Bays & Basic Alarm Board |
| cPCIS‑3330/64/AC | 9U 64-bit/66MHz CompactPCI Subsystem with AC input AT PSU (4x 250W), 3.5" HDD Drive Bay, 2x 5.25" HDD Drive Bays & Basic Alarm Board |
| cPCIS‑3330/AC | 9U 32-bit/33MHz CompactPCI Subsystem with AC input AT PSU (4x 250W), 3.5" HDD Drive Bay, 2x 5.25" HDD Drive Bays & Basic Alarm Board |
