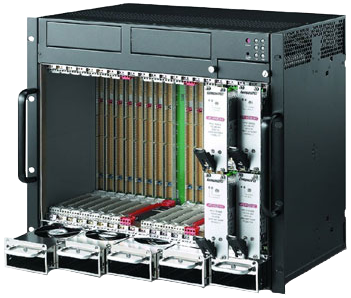

cPCIS-3320
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Standard 6U CompactPCI and PICMG 2.5 H.110 CT Bus
- PICMG 2.1 hot swap compliant 64-bit CompactPCI backplane with P3 & P5 rear I/O
- 3+1 hot swappable 750 W + 250 W redundant power supplies with universal AC input
- Redundant cooling architecture
- Operating temperature: 0˚C to +55˚C (max.)
The cPCIS-3320 Series 9U Dual-System Platform is ideal for developing telecom applications focusing on media and signaling gateways, as well as telecom value-added services like Location Based Service (LBS), Ring Back Tone (RBT), and Multimedia Message Systems (MMS).
This flexible and reliable development platform with optimized I/O and storage provides the best solution for equipment manufacturers and system integrators and shortens time-to-market for fast growing business revenues.
The cPCIS-3320 supports dual systems and two 5.25″ drive bays. System A (left side) supports 1+7 slots (1 host slot + 7 peripheral slots), and System B (right side) supports 1+4 slots (1 host slot and 4 peripheral slots). Both segments support 64-bit/66MHz PCI and H.110 CT buses.
| Technical specifications | |
| Enclosure |
EIA RS-310C 19” 9U high rackmount enclosure Coated metal plate outer covering Guarded power switch and reset button |
| Form Factor | 6U CompactPCI |
| CompactPCI Standards | 2.0 R3.0, 2.1 R2.0, 2.5 R1.0, 2.7 R1.0, 2.9 R1.0, 2.11 R1.0 |
| Backplanes |
System A cPCI Bus: 64-bit/33 MHz 1x system slot 7x peripheral slots H.110 CT Bus: Comply with all peripheral slots Rear I/O: All slots support P3, P4, P5 rear I/O with AB-type shroud V (I/O): 3.3 V or 5 V (default) selectable Power Input: 2x ATX connectors, DC screw terminals System B cPCI Bus: 64-bit/66 MHz 1x system slot 4x peripheral slots H.110 CT Bus: Comply with all peripheral slots Rear I/O: All slots support P3, P4, P5 rear I/O with AB-type shroud V (I/O): 3.3 V or 5 V (default) selectable Power Input: 2x ATX connectors, DC screw terminals |
| Power Supply |
Supports current sharing on 5 V, 3.3 V, and 12 V PICMG 2.11 47-pin power interface Power module: cPS-H325/AC x4 Max. Load +5 V: 132 A +3.3 V: 132 A +12 V: 22 A -12 V: 4 A Min. Load +5 V: 6 A |
| Alarm Module |
Basic Alarm Module: Monitors inner chassis temperature, voltage and fan status Abnormal status will generate alarm and LED warning Alarm reset |
| Drive Bay | Two 5.25” drive bays |
| Cooling System |
2x top blowers for ventilation: Rated speed for each fan: 3150 RPM Rated power for each fan: 6.12 W Maximum Air Flow: 21.02 CFM (Call for Availability) 1x top fan for ventilation: Rated speed for each fan: 4000 ±500 RPM Rated power for each fan: 2.64 W Maximum Air Flow: 48.2 CFM 5x fans for front-access intake: Rated speed for each fan: 4000 ±500 RPM Rated power for each fan: 2.64 W Maximum Air Flow: 48.2 CFM |
| Dimensions | 483.2 x 399 x 339.1 (mm, W x H x D, w/ handle) |
| Weight | Weight: 24.5 kg/53.9 lbs (including redundant power supply and backplane only) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | 0°C to +55°C |
| Storage temperature | -20°C to +80°C |
| Humidity | 5% to 95%, non-condensing |
| Shock | 15 G peak-to-peak, 11 ms duration, non-operation |
| Vibration |
Non-operation: 1.88 Grms, 5-500 Hz, each axis Operation: 0.5 Grms, 5-500 Hz, each axis, tested with 2.5” HDD |
| Model | Description |
| cPCIS‑3320/AC/CMM | 9U 64-bit/66MHz CompactPCI Dual System with AC input AT PSU (4x 250W) & CMM slot |
| cPCIS‑3320/AC | 9U 64-bit/66MHz CompactPCI Dual System with AC input AT PSU (4x 250W) & Basic Alarm Board |
