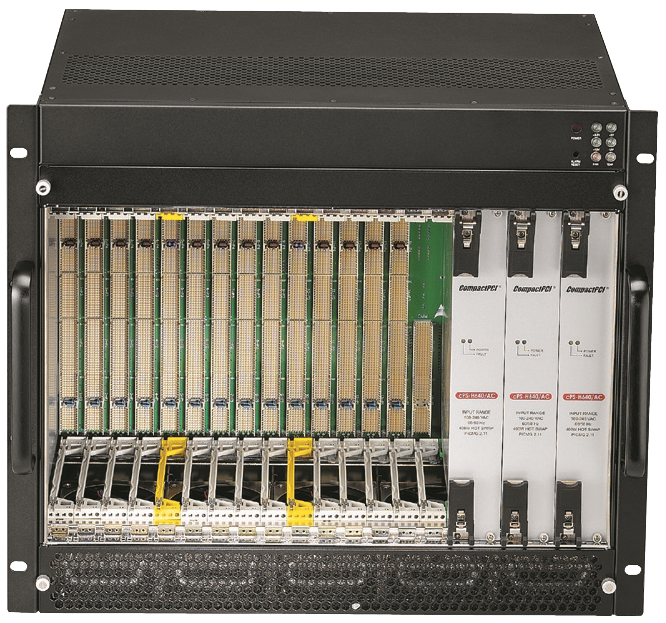

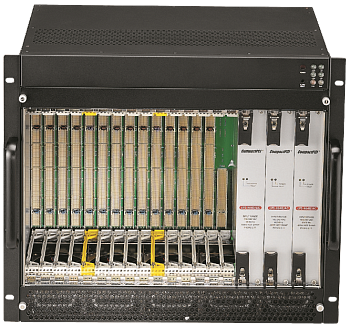

cPCIS-3300BLS
9U Blade Server for 12 Blades with Dual Fabric Switch Slots
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- PICMG 2.16 Packet Switching Backplane architecture
- 21x slots (12x node, 2x fabric, 3x redundant power modules and 1x CMM)
- Hot swappable 800 W + 400 W redundant CompactPCI power supply
- Operating temperature: 0°C to +55°C (max.)
The cPCIS-3300BLS is a 19″ 21-slot 6U CompactPCI Subsystem ideally suited to equipment manufacturers and system integrators.
| Technical specifications | |
| Enclosure |
EIA RS-310C 19” 9U high rackmount enclosure Coated metal plate outer covering Guarded power switch and reset button |
| Form Factor | 6U CompactPCI |
| CompactPCI Standards | 2.0 R3.0, 2.1 R2.0, 2.9 R1.0, 2.11 R1.0, 2.16 R1.0 |
| Backplane |
cBP-6614A 12x 2.16 node slots (all node slots act as system slot) 2x 2.16 fabric slots 1x CMM slot Rear I/O: All slots support P3, P4, P5 rear I/O with AB-type shroud V (I/O): 3.3 V or 5 V (default) selectable Power Input: AC Input, one ATX connector, DC screw terminals |
| Power Supply |
Supports current sharing on 5 V, 3.3 V, and 12 V PICMG 2.11 47-pin power interface Power module: cPS-H640/AC x 3 (400 W x3 redundant) Max. Load +5 V: 150.0 A +3.3 V: 120.0 A +12 V: 45.0 A -12 V: 15.0 A Min. Load +5 V: 6 A |
| Alarm Module |
Basic Alarm Module: Monitors inner chassis temperature, voltage and fan status Abnormal status will generate alarm and LED warning Alarm reset |
| Drive Bay | None |
| Cooling System |
Five fans for front-access intake: Rated speed for each fan: 4000 ±500 RPM Rated power for each fan: 2.64 W Maximum Air Flow: 48.2 CFM |
| Dimensions | 483.2 x 399 x 339.1 (mm, W x H x D, w/ handle) |
| Weight | 23 kg/50.7 lbs (including redundant power supply and backplane only) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | 0°C to +55°C |
| Storage temperature | -20°C to +80°C |
| Humidity | 5% to 95%, non-condensing |
| Shock | 15 G peak-to-peak, 11 ms duration, non-operation |
| Vibration |
Non-operation: 1.88 Grms, 5-500 Hz, each axis Operation: 0.5 Grms, 5-500 Hz, each axis, tested with 2.5” HDD NEBS: Designed for NEBS Level 3 |
| Model | Description |
| cPCIS‑3300BLS/AC | 9U CompactPCI Blade Server Subsystem with AC input AT PSU (3x 400W) |
| cPCIS‑3300BLS/AC/CMM | 9U CompactPCI Blade Server Subsystem with AC input AT PSU (3x 400W) & CMM slot |
| cPCIS‑3300BLS/DC/CMM | 9U CompactPCI Blade Server Subsystem with AC input AT PSU (3x 400W) & Basic Alarm Board |
