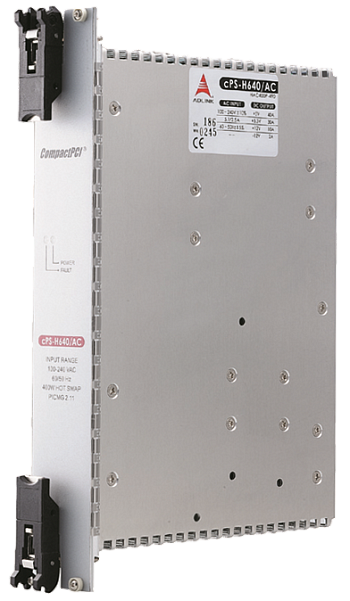

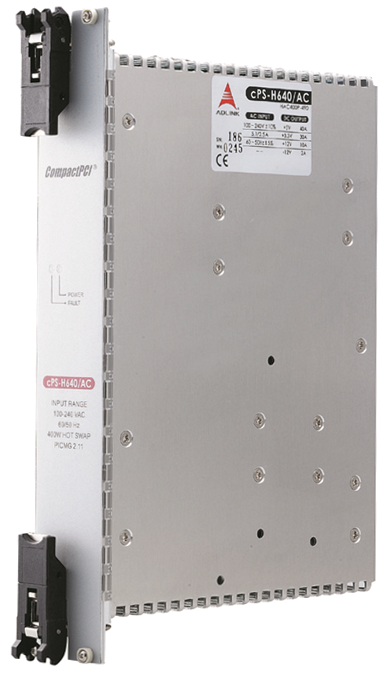

cPS-H640/AC
400W 6U CompactPCI Hot-Swappable Redundant Power Supply with universal AC input
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Input voltage: 100-240 10% V AC
- 400 W DC output
- Hot swappable
- Operating temperature: 0°C to +70 °C
PICMG 2.11 47-Pin Hot-Swap Redundant 6U CompactPCI 8HP 400 W Power Module with Universal AC Input. Operating temperature: 0°C to +70 °C.
| Technical specifications | |
| PICMG Standards | PICMG 2.11 CompactPCI Power Interface compliant |
| Form Factor | 6U cPCI (233.33 x 160 mm), 2-slot (8HP) wide |
| Input Voltage | 100-240 10% V AC |
| Input Frequency | 50-60 5% Hz |
| Input Current |
5.1 A @115 V AC 2.5 A @ 230 V AC |
| Inrush Current | < 30 A @230 V AC |
| Power Factor Correction (PFC) |
Typical 0.97-0.99 Meets Harmonic Correction IEC1000-3-2 |
| Output Voltage/Current |
5 V: Typ. 40.0 A, Max. 50.0 A 3.3 V: Typ. 20.0 A, Max. 40.0 A +12 V: Typ. 10.0 A, Max. 15.0 A -12 V: Typ. 2.0 A, Max 5.0 A Max. load is the continuous operating load of each rail individually. The Max. load of each rail cannot be drawn from all outputs simultaneously. |
| Output Voltage Minimum Load |
1.0 A @ +5 V Output Wattage: Typical 400 W continuous Output Wattage: Typical 0.1% Load Regulation: Typical 1-3% |
| Ripple | 50 mV @ +5 V and 3.3 V outputs, 120 mV @ +12V and -12V outputs |
| Hold-up Time | 10 ms after power fail signal |
| Efficiency | Typical 79-83% |
| Output voltage sense and current sharing | Available at 5 V , 3.3 V and +12 V outputs |
| N+1 Redundancy | Installed with internal OR-ing diodes at all outputs for N+1 redundancy operation |
| Remote ON/OFF | Available at [INH#] & [EN#] pins |
| Power Failure Signal | Available at [FAL#] pin |
| Power Degradation Signal | Available at [DEG#] pin |
| Protections |
Over Temperature Protection (OTP): 70˚C Over Current Protection (OCP): Installed at each rail Over Load Protection (OLP): Typical 120% max. load, fully protected against output overload or short circuit Over Voltage Protection (OVP): Built-in at all outputs |
| Status LED |
< Green LED > [POWER] means valid input voltage < Amber LED > [FAULT] means a critical fault |
| Earth Leakage | < 0.9mA @ 230 V AC > |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature |
0˚C to 70˚C (0˚C to +40˚C at full load with specified air flow. De-rates linearly to 50% at +70˚C.) Cooling Requirement: Minimum 20 CFM airflow is required for typical full rating power |
| Storage temperature | -20˚C to +85˚C |
| Humidity | 5% to 90%, non-condensing |
| Shock | 15 G peak-to-peak, 11 ms duration, non-operation |
| Vibration | Operation: 1.88 Grms, 5-500 Hz, each axis |
| Compliance | IEC950, EN 55022, FCC Class A, IEC60950 Class I |
| Model | Description |
| cPS‑H640/AC | PICMG 2.11 47-Pin Hot-Swap Redundant 6U CompactPCI 8HP 400 W Power Module with Universal AC Input |
