cPS-H325/AC

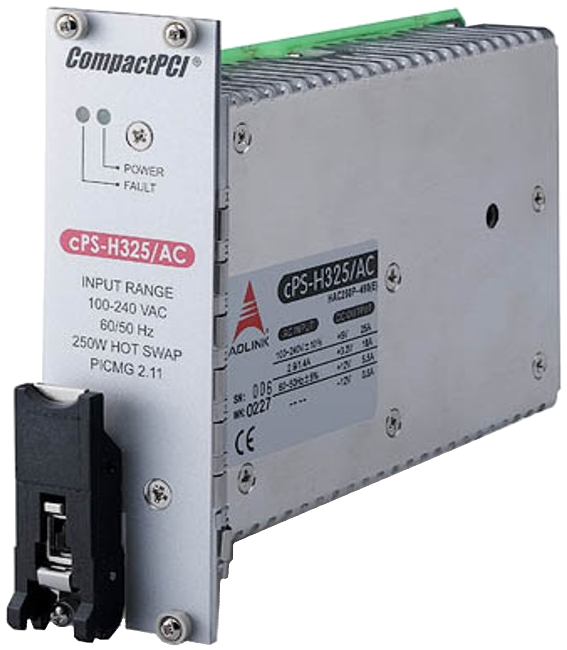

PICMG 2.11 47-Pin Hot-Swap Redundant 3U CompactPCI 8HP Power Module with universal AC Input
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Input Voltage: 90-264 ± 10% VAC
- 250 W DC output
- Hot swappable
- Operating temperature: -40°C to +70 °C
PICMG 47-pin hot-swap redundant 3U CompactPCI 8HP 250 W power module with universal AC Input. Operating temperature: -40°C to +70 °C.
| Technical specifications | |
| PICMG Standards | PICMG 2.11 CompactPCI Power Interface compliant |
| Form Factor | 3U cPCI (100 x 160mm), 2-slot (8HP) wide |
| Input Voltage | 90-264 ± 10% VAC |
| Input Frequency | 47-63 ±5% Hz |
| Input Current |
2.8 A @ 115 VAC 1.4 A @ 230 VAC |
| Inrush Current | <30 A @ 230 VAC |
| Power Factor (PFC, only for AC) |
Correction Typical 0.95-0.97 Meets Harmonic Correction IEC1000-3-2 |
| Output Voltage/Current |
5V Typ. 25.0A, Max. 33.0A 3.3V: Typ. 18.0A, Max. 33.0A +12V: Typ. 5.0A, Max. 6A -12V: Typ. 0.5A, Max. 1.5A 0.5 A @ +5 V Minimum Load Max. load is the continuous operating load of each rail individually. The max. load of each rail cannot be drawn from all outputs simultaneously. |
| Output Wattage | Typical 250W continuous |
| Line Regulation | Typical 0.1% |
| Load Regulation | Typical ± 1-2% |
| Ripple |
50 mV @ +5 V and 3.3 V outputs 120 mV @ +12 V and -12 V outputs |
| Hold-up Time | 5 ms after power fail signal |
| Efficiency | Typical 78-79% |
| Output Voltage Sense |
Available at 5V, 3.3V, and +12V outputs and current sharing N+1 Redundancy: Equipped with internal OR-ing diodes at all outputs for N+1 redundancy operation Remote ON/OFF: Available at [INH#] & [EN#] |
| Power Failure Signal | Available at [FAL#] pin |
| Power Degradation Signal | Available at [DEG#] pin |
| Protections |
Over Temperature Protection (OTP): +70˚C Over Current Protection (OCP): installed at each rail Over Load Protection (OLP): typical 120% max. load, fully protected against output overload or short circuit Over Voltage Protection (OVP): built-in at all outputs |
| Status LED |
[POWER] means valid input voltage [FAULT] means a critical fault |
| Earth leakage | <0.5 mA @ 230 VAC <0.5 mA @ 48 VDC <0.5 mA @ 24 VDC |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature |
-40°C to +70°C at full load with at least 600LFM air flow Derates linearly to 60% at +70°C for H325/24 (A warm-up time 3 minutes is required after cold start at temperatures from -40°C to +0°C). -40°C to +75°C at full load with specified air flow Derates linearly to 60% at +75°C for H325/110 (A warm-up time 10 minutes is required after cold start at temperatures from 0°C to -40°C) |
| Storage temperature | -40°C to +85°C |
| Cooling requirement | Min. 20 CFM is required for typical full power rating |
| Humidity | 5% to 95%, non-condensing |
| Shock | 15 G peak-to-peak, 11 ms duration, non-operation |
| Vibration | Non-operation: 1.88 Grms, 5-500 Hz, each axis |
| Certifications | IEC950, EN 55022, FCC Class A, IEC60950 Class I |
| Model | Description |
| cPS‑H325/AC | PICMG 47-pin hot-swap redundant 3U CompactPCI 8HP 250 W power module with universal AC Input |
