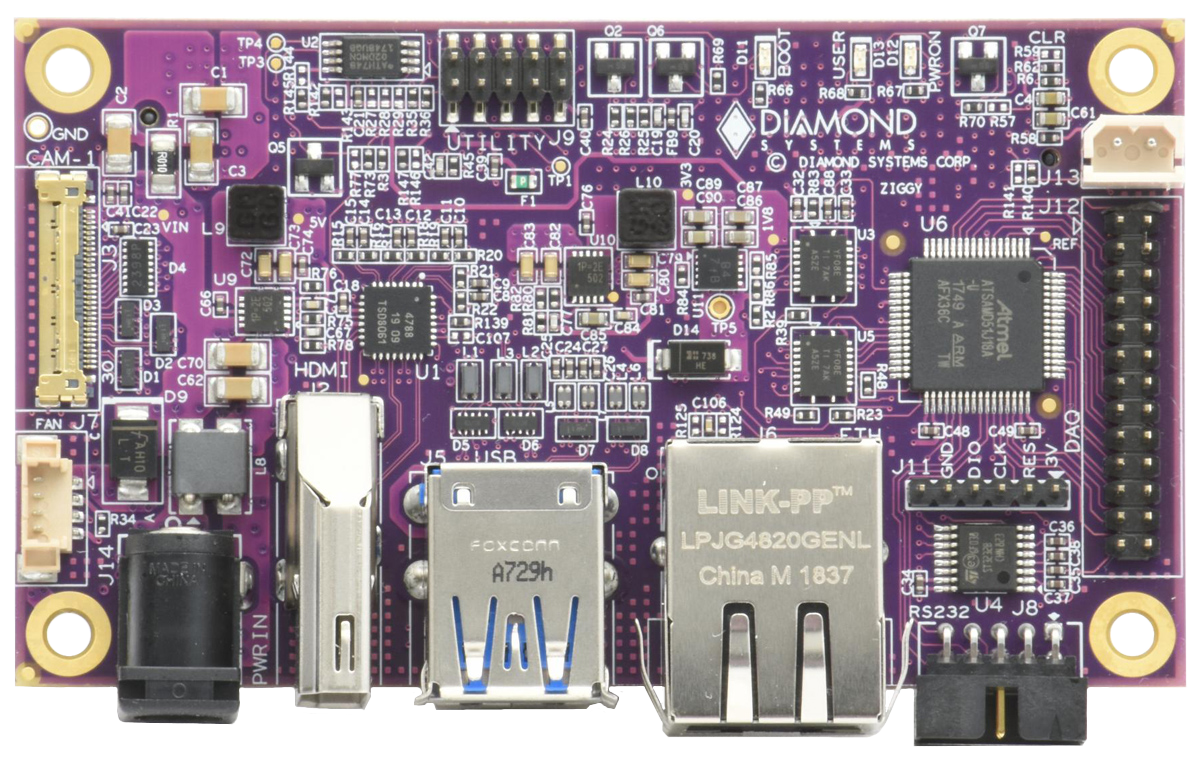

Ziggy offers a compact, low cost platform for evaluation of Jetson computer modules as well as implementation of a marketable solution for AI and machine learning applications. Ziggy provides access to the most popular I/O features of the Jetson modules, including camera, Ethernet, USB, and serial. In addition it features a unique data acquisition circuit with analog input, analog output, and digital I/O to enable Ziggy to interface to the «real world» of analog and digital sensors and controls.
Diamond provides a complete Linux BSP for Ziggy with built-in support for all I/O including the data acquisition features. A GUI provides convenient real-time control of the data acquisition I/O.
The ZiggyBox is a cost-effective, compact, complete turnkey Jetson computing solution consisting of a Jetson TX2/TX21i module installed on a Ziggy carrier board and housed in an enclosure with table-top, wall mount, or DIN-rail mount capability.
Technical specifications | |
Interfaces |
1x 4-channel CSI camera input 1x 10/100/1000 Ethernet (RJ-45) 1x USB 3.0 Type A + 1x USB 2.0 Type A 1x USB 2.0 micro with OTG support 1x HDMI 2x RS-232 6x analog inputs, 12-bit resolution, 0-3.3V output range, up to 1Msps throughput 2x analog outputs, 12-bit resolution, 0-3.3V output range 12x digital I/O, 3.3V logic levels |
Input voltage: | 9-18VDC (with TX2 installed) / 5.5-18VDC (with TX2i installed) |
Dimensions: | 87mm x 50mm / 3.43" x 1.97" (same size as Jetson™ module) |
Environmental and physical specifications |
|
---|---|
Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
Model | Description |
ZIG-BB01 | Ziggy baseboard for Jetson TX2/TX2i module, standard model with DAQ |
ZIG‑BB02 | Ziggy baseboard for Jetson TX2/TX2i module, no DAQ |
ZIG-001 | Ziggy carrier board for Jetson TX2/TX2i computer on module (module and heat sink / fan sink not included) |
