ZiggyBox

Compact, cost-effective system for NVIDIA Jetson TX2/TX2i modules
  • Details
  • Specification
  • Order information
  • A wide variety of standard and industrial I/O features
  • Input voltage: 9-15VDC or 9-19VDC depending on installed Jetson module
  • Dimensions: 63x67x96mm / 2.4x2.6x3.7"
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)

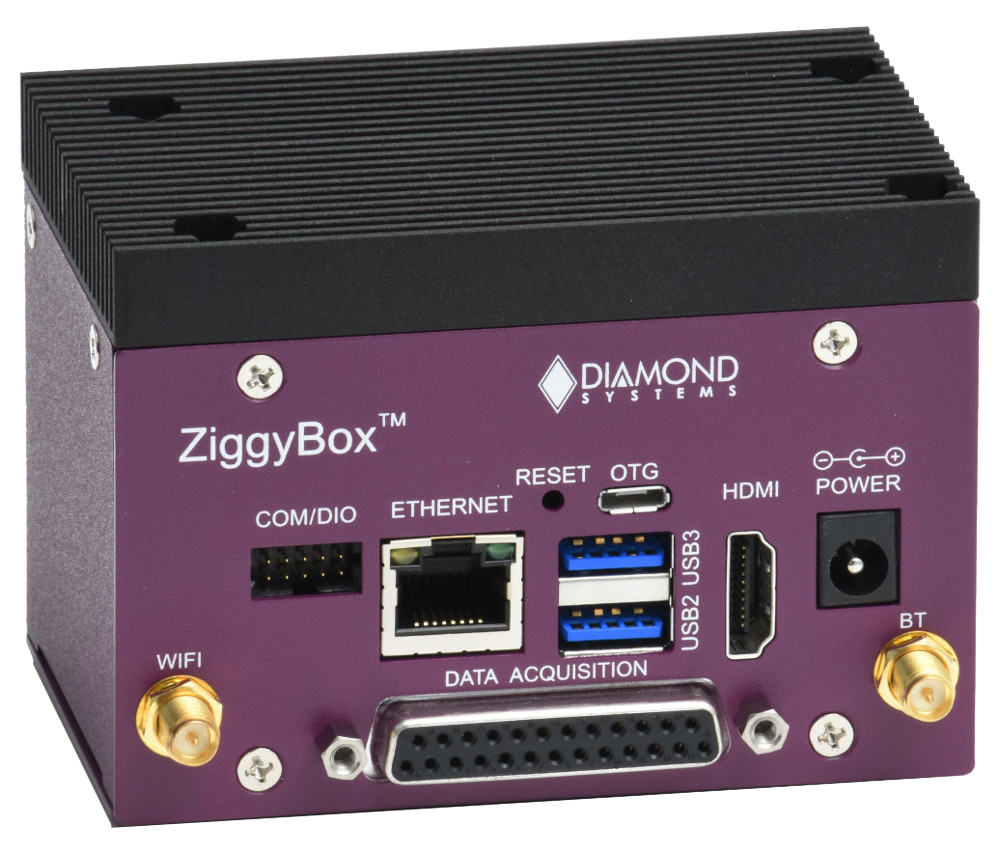

The ZiggyBox provides a compact and highly cost effective solution for AI at the edge and machine learning applications for industrial and lab applications. It is based oround the NVIDIA Jetson TX2/TX2i advanced computing module with NVIDIA Pascal-family GPU technology. The Jetson module is housed in a rugged miniature enclosure measuring only 63x67x96mm / 2.4x2.6x3.7".

ZiggyBox offers easy access to the most popular Jetson I/O features, including Ethernet, USB 3.0 / 2.0 / OTG ports, HDMI display, and 2 RS-232 ports. The built-in carrier board adds a valuable data acquisition circuit with real-world analog and digital I/O features and software support. An integrated heat sink provides reliable operation at up to 85°C without forced air. With its integrated Linux OS and table-top / DIN rail mounting options, ZiggyBox is ready to be deployed wherever the combination of high-performance computing and ultra-compact size are required.

Data Acquisition

ZiggyBox contains a full-fledged analog and digital I/O circuit that provides control and monitoring of real-world events such as sensor inputs, temperature control, keypads/switches, and industrial processes. The 6 analog inputs feature 0-3.3V input range and programmable 12-bit up to 16-bit resolution, with user-controllable filtering and averaging for noise reduction. The 2 analog outputs offer 12-bit resolution and 0-3.3V output range. The 13 DIO feature 3.3V logic levels. All features are supported by Diamond’s built-in data acquisition driver software, featuring a programming library with application demos plus an interactive GUI-based control program that offers real-time access and control.

Technical specifications
Interfaces: 1x 10/100/1000 Ethernet (RJ-45)
1x USB 3.0 Type A + 1x USB 2.0 Type A
1x USB 2.0 micro with OTG support
1x HDMI
2x RS-232
6x analog inputs, 12-bit resolution, 0-3.3V output range, up to 1Msps throughput
2x analog outputs, 12-bit resolution, 0-3.3V output range
12x digital I/O, 3.3V logic levels
Input voltage: 9-15VDC (with TX2 installed) / 9V-19VDC (with TX2i installed)
Dimensions: 63x67x96mm / 2.4x2.6x3.7"

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F)
Model Description
ZIGBOX‑00‑HD Enclosure Kit (no electronics)
ZIGBOX‑20‑HD ZiggyBox with TX2 module, heat sink (no fan), DIN bracket
ZIGBOX‑21‑HD ZiggyBox with TX2i module, heat sink (no fan), DIN bracket
Cables and accessories
ZIG-001 Ziggy carrier board for Jetson TX2/TX2i computer on module (module and heat sink / fan sink not included)
