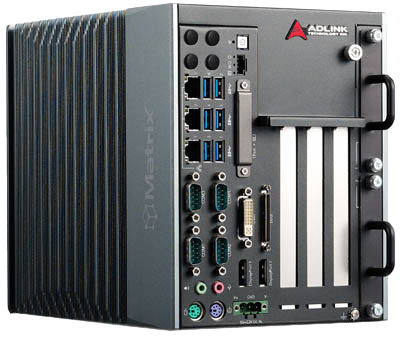

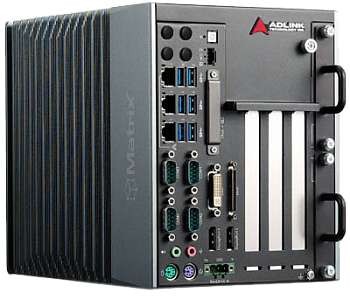

MXC-6400

Fanless Expandable Embedded Computer with PCI/PCIe Expansion
  • Details
  • Specification
  • Order information
  • 6th Generation Intel® Core™ i7/i5/i3 Processors and QM170 chipset
  • 2x DDR4 SO-DIMM sockets support up to 32GB memory
  • Support for 3 independent displays with 2x DisplayPort and 1x DVI-I port
  • Extended Temperature option: -20°C to 70°C (-4°F to 158°F) (w/industrial SSD or CFAST)

The Matrix MXC-6400 series is a line of high-performance fanless embedded computers, integrating 6th generation Intel® Core™ i7/i5/i3 processors and the QM170 chipset for more powerful computing and graphics performance with minimal power consumption.

Features include 3 PCI/PCIe expansion slots allowing installation of a variety of off-the-shelf PCI/PCIe cards for configurable applications, 2 internal mPCIe, and 1 USIM slot for 3G communication. In addition, the MXC-6400 series offers independent digital display support from DisplayPort and DVI-I with HD 4K resolution, as well as 6 USB 3.0 and 3 GbE LAN ports with Intel® iAMT 11.0 and teaming function. The two hot-swappable SATA III ports support 2.5″ storage in the front panel with high speed SATA 6.0 Gb/s and two onboard SATA III internal ports carry RAID 0, 1, 5, 10 support. Optional 16 channel isolated DI/O with digital filter meets the needs of general purpose industrial automation.

With its compact construction, flexibility, and rich I/O capacity, the MXC-6400 is an ideal choice for a wide range of applications supporting factory and machine automation, surveillance, railway and maritime automation, and in-vehicle transportation systems.

Technical specifications
Processor Intel® Core™ i7-6820EQ 4 Core/8 Threads, 2.8GHz, 8M cache (Max Turbo Frequency 3.5 GHz) (MXC-6401D)
Intel® Core™ i5-6440EQ 4 Core/4 Threads, 2.7GHz, 6M cache (Max Turbo Frequency 3.4 GHz) (MXC-6402D)
Intel® Core™ i3-6100E 2 Core/4 Threads, 2.7 GHz, 3M cache (MXC-6403D)
Chipset Intel® Mobile Platform Controller hub (QM170)
Video 2 Display Port 1.3 support VGA/DVI/HDMI interfaces by convertor cable with latch
VGA+DVI dual display output by DVI-I connector support up to 4096 x 2304@60Hz resolution
HD 4K resolution support 3 independent audio streams with video audio Gen9 Graphics, GT2e and GT4e
Memory 2 SO-DIMM sockets support DDR4 2133 MHz up to 32GB
Expansion slots 1 PCI +2 PCIex8 slots or 1 PCI and 1 PCIex16 slots, auto switched
Mini PCIe 2 Mini PCIe slots
USIM 1 USIM slot for 3G
Ethernet 3 Intel® GbE ports (2 Intel® I210IT and I219 PHY)
Teaming function support, Intel iAMT 11.0, Wake On LAN
Serial Ports 2 software-programmable RS-232/422/485 (COM1 & COM2)
with auto-flow control 2 RS-232 (COM3 & COM4)
USB 6 USB 3.0 ports (two 1600 mA and four 900 mA)
1 internal USB 2.0 port
DIO (option) 16-CH DI and 16-CH DO with isolation
COS interrupt for all digital input
Configurable Digital Filter
Audio Audio-in / Line-out
KB/MS 1 PS/2 keyboard and 1 PS/2 mouse
WDT Watch Dog Timer supported
DC Input Built-in 9-32 VDC wide-range DC input
3 pluggable connectors with latch (GND, V-, V+)
3-pin remote power on/off switch on the front
AC Input Optional 160 W external AC-DC adapter for AC input
SATA HDD 2 hot-swappable SATA III port for 2.5” HDD/SSD on front panel
2 onboard internal SATA III for 2.5” HDD/SSD installation
SATA RAID 0,1,5,10 & high speed SATA 6 Gb/s support
CompactFlash 1 type II CFAST socket
Optional Fan Module Optional hot-pluggable fan module for dissipating heat from PCI/PCIe card, smart fan control
Dimensions 150 (W) x 200 (H) x 225 (D) mm
Weight 4 kg (8,82 lbs)
Mounting Wall-mount kit

Environmental and physical specifications

Operating Temperature Standard: 0°C to 50°C (32°F to 122°F) (w/HDD)
Extended Temperature option*: -20°C to 70°C (-4°F to 158°F) (w/industrial SSD or CFAST)
Storage Temperature -40°C to 85°C (-40°F to 185°F) (excl. HDD/SDD/CFAST)
Humidity approx. 95% @ 40°C (104°F) (non-condensing)
Vibration Operating, 5 Grms, 5-500 Hz, 3 axes (w/ CFAST or SSD)
Operating, 0.5 Grms, 5-500 Hz, 3 axes (w/ HDD)
ESD Contact +/-4 KV and Air +/-8 KV
Shock Operating, 50 G, half sine 11 ms duration (w/ CFAST or SSD)
EMC CE and FCC Class A
Safety UL/cUL,CB
Model Description
MXC-6402D/M32G Intel Skylake-H Core i5 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 32G DDR4
MXC-6401D/M8G/Fan Intel Skylake-H Core i7 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 8G DDR4, w/Fan
MXC-6401D/M4G Intel Skylake-H Core i7 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 4G DDR4
MXC-6401D/M8G Intel Skylake-H Core i7 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 8G DDR4
MXC-6401D/M16G Intel Skylake-H Core i7 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 16G DDR4
MXC-6401D/M32G Intel Skylake-H Core i7 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 32G DDR4
MXC-6402D/M4G Intel Skylake-H Core i5 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 4G DDR4
MXC-6402D/M8G Intel Skylake-H Core i5 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 8G DDR4
MXC-6403D/M4G Intel Skylake-H Core i3 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 4G DDR4
MXC-6403D/M8G Intel Skylake-H Core i3 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 8G DDR4
MXC-6402D/M16G Intel Skylake-H Core i5 CPU+QM170 fanless expandable computer, 1PCI+2PCIex8, 2DP+1DVI-I, 3xGbE, 6xUSB3.0, 4xCOM, 16-CH DIO, 1xCfast socket, 4x2.5" SATA port, 9-32VDC input, 16G DDR4
Accessories
MXC‑6400 Optional Fan Module Hot-pluggable fan module for MXC-6400 series
8 GB DDR4 Upgrade Upgrade to 8 GB DDR4 Memory
500 GB HDD Option Factory-installed 500 GB SATA hard disk drive
1TB HDD Option Factory-installed 1TB SATA hard disk drive
64 GB SSD option Factory-installed 64 GB MLC SATA solid-state drive
160W AC-DC Adapter 160W industrial grade AC-DC adapter (-20 to 70°C. -4°F to 158°F)
Extended Temperature Option Optional screening service to extend the operating temperature of (-20 to 70°C. -4°F to 158°F)
