COM Express Type 6 104e

Carrier Board
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • 4x USB 3.0, 2x GbE, 2x RS-232/485, LVDS (2x24), VGA
  • PCIe/104 Type 1 (CCG018) or PCIe/104 Type 2 (CCG017)
  • On-Board DisplayPort/HDMI/DVI display switching
  • Extended temperature range -40°C to +85°C

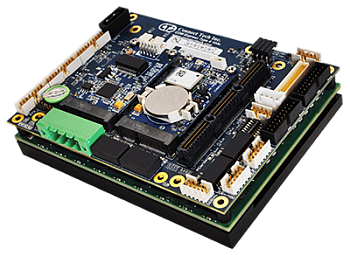

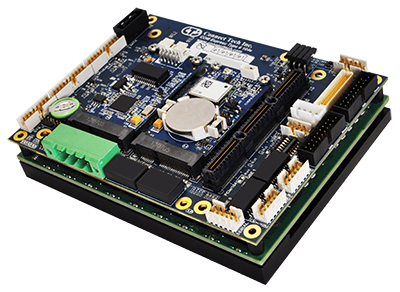

Connect Tech’s COM Express® Type 6 104e is a compact carrier board which matches the dimensions of a COM Express Basic module and offers the ultimate durability with rugged, locking pin header connectors.

In addition to the option for multiple video display, on-board DisplayPort/HDMI/DVI switching, USB 3.0, dual GbE and swichable Mini-PCIe / mSATA ports a PCIe/104 Type 2 connector allows for even further 10 expansion. COM Express® Type 6 104e Carrier Board is ideal for space constrained applications, harsh environments, demanding conditions and supports extended temperature ranges of -40°C to +85°C.

Technical specifications
Dimensions 125mm x 95mm (4.921” x 3.740”)
Mini-PCIe/mSATA 2x Mini-PCIe/mSATA
SATA 1x External SATA Link (Switchable with PCIe/104 Type 2 SATA Link 2)
Display 2x DisplayPort/HDMI/DVI (On-Board Switching)
1x VGA
1x LVDS
Serial 2x RS-232/RS-485
USB 4x USB 3.0
Ethernet 2x Gigabit Ethernet (10/100/1000)
Audio HD Audio: 1x Input, 1x Output
PCIe/104 Type 2 (CCG017) 4x PCIe x1 Link
2x USB 2.0 Link
2x SATA Link (Link 2 Switchable with External SATA)
PCIe/104 Type 1 (CCG018) 1x PCIe x16 Link
4x PCIe x1 Link
2x USB 2.0 Link
PCIe/104 Power +12V @ Supplied Amperage
+5V @ 16A
+5V_SB Not Supplied (Population Option)
+3.3V Not Supplied (Population Option)
Power Requirements +12V DC Input
Accessories Cable Kit

Environmental and physical specifications

Operating Temperature -40ºC to 85ºC (-40ºF to 185ºF)
Model Description
CCG017 Connect Tech Inc. COM Express Type 6 104e PCIe/104 Type 2 Carrier Board
CCG018 Connect Tech Inc. COM Express Type 6 104e PCIe/104 Type 1 Carrier Board
CKG056 Starter Cableset for CCG017 & CCG018
CKG057 Full Cableset for CCG017 & CCG018
