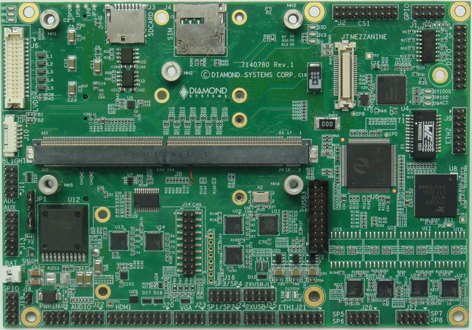

Eagle Baseboard

3.5 Inch Form Factor I/O Baseboard for ARM Computer-on-Modules
  • Details
  • Specification
  • Order information
  • A long life, scalable platform for ARM-based application development
  • Supported COMs:
    Toradex Apalis iMX6 800MHz or 1GHz ARM Cortex A9
    Toradex Apalis T30 1.4GHz ARM Cortex A9
    Toradex Apalis TK1 2.2GHz ARM Cortex A15
  • A wide variety of standard and industrial I/O features
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)

The Eagle baseboard is designed to work with the Toradex Apalis family of ARM COMs. It turns the Apalis modules into complete embedded systems, with a wide variety of standard and industrial I/O features to create off-the-shelf solutions for ARM-based industrial embedded computing.

Eagle provides a long life, scalable platform for ARM-based application development. Toradex’s Apalis module family currently contains three members, with the newest module, Apalis TK1, recently introduced in July 2016. The Apalis form factor, as well as all processors used on the modules, have long life commitments from their suppliers, ensuring long life availability of the complete product. Customers have great flexibility in selecting not only the price/performance characteristics of the installed COM, but multiple configurations including the number of cores, memory and flash size, and operating temperature range.

Most I/O features can be configured to meet any customer’s specific requirements as well as cost and power consumption targets. This includes removal of unneeded features and I/O connectors plus additional ruggedization services.

Supported ARM Computer-on-Modules

Apalis iMX6 Apalis T30 Apalis TK1
Freescale i.MX6 NVIDIA Tegra 3 NVIDIA Tegra K1
ARM Cortex A9 ARM Cortex A9 ARM Cortex A15
Quad core
dual core
Quad core Quad core
1GHz / 800MHz 1.4GHz Up to 2.2GHz
512MB to 2GB DDR3 RAM 1GB or 2GB DDR3 RAM
2GB DDR3 RAM
4GB eMMC flash 4GB/8GB eMMC flash 16GB eMMC flash
End of life 2028 End of life 2025 End of life 2025
Please visit the Toradex website, www.toradex.com, for more information about these ARM Computer‑on‑Modules.

Customization Options

The following customization options are available for the Eagle baseboard (minimum order quantities apply):
  • 2 CANbus 2.0 ports via daughtercard
  • 4 serial ports with opto-isolation
  • 6 serial ports fixed RS-232 + 2 RS-232/422/485
  • 8 3.3V GPIO instead of 4 opto in + 4 opto out
  • +5VDC power input only
  • Hardwired configuration (no jumpers)
  • Conformal coating
  • Connector and feature depopulation
Software Development Kits

Complete Software Development Kits with a bootable operating system are available with all the components you need to get started on your embedded design project. The kit contains a 32GB micro-SD flashdisk for Linux pre-loaded and a software DVD.

Eagle Cable Kit

The Eagle cable kit includes cables for Eagle's input and output. Many cables are also available individually.


This product is also available as a complete SBC with installed ARM module. Click here

Technical specifications
Supported COMs Toradex Apalis iMX6 800MHz or 1GHz ARM Cortex A9
Toradex Apalis T30 1.4GHz ARM Cortex A9
Toradex Apalis TK1 2.2GHz ARM Cortex A15
Networking 2 Gigabit Ethernet ports
Serial ports 8 RS-232/422/485 ports with software configuration
USB ports 5-6 USB 2.0 Ports depending on ARM module
Mass storage 1 micro SD & 1 mSATA socket
Camera Video/camera MIPI CMOS sensor interface
Audio HD audio
Data acquisition 4 12-bit A/D, 4 PWM
16 GPIO, 3.3V logic levels
4 opto-isolated digital inputs, 3-28VDC
4 opto-isolated digital outputs, 3-28VDC
Connectivity 1 I2C, 1 SPI, 2 CANbus 2.0 on pin headers
I/O expansion PCIe MiniCard socket (with SIM socket)
Type specific connector for custom I/O
Input voltage 9-36VDC
Power consumption 12V in: 10.2W
36V in: 10.8W
Dimensions 4.0” x 5.75” (102mm x 146mm)

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F) capable
Dependent on Apalis COM selected
Shock MIL-STD-202G compatible
Vibration MIL-STD-202G compatible
Operating humidity 10-95% relative humidity, non-condensing
RoHS Compliant
Model Description
EGL-DX-BB Eagle 3.5-inch full-feature baseboard for Apalis ARM COMs
Cables and accessories
PNL-EGL-01 Eagle / Eaglet Panel I/O Board
CK-EGL-01 Eagle cable kit, no HDMI cable
CK-EGL-02 Eagle cable kit, with HDMI cable
SDK-EGL-MX6-LNX Eagle/Eaglet Linux SDK for Apalis i.MX6 model
SDK-EGL-T30-LNX Eagle/Eaglet Linux SDK for Apalis T30 model
DK-EGL-MX6Q2G-LNX Eagle SBC with i.MX6 CPU, Linux OS, and cable kit
DK-EGL-T30Q1G-LNX Eagle SBC with T30 CPU, Linux OS, and cable kit
