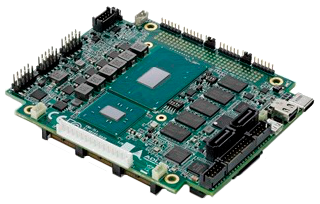

CMx-SLx

PCI/104-Express Type 1 Single Board Computer
  • Details
  • Specification
  • Order information
  • 6th Gen. Intel® Core™ Processor
  • Up to 8GB DDR4-ECC soldered memory
  • Intel® Generation 9 Low Power Graphics Core Architecture
  • Extreme Rugged operating temperature: -40°C to +85°C

The CMx-SLx is a PCI/104-Express Type 1 Single Board Computer (SBC) featuring the 64-bit Intel 6th Core i3 processor (formerly «Skylake-H»), supported by the Intel CM236 Chipset. The CMx-SLx is specifically designed for customers who need high-level processing and graphics performance in a long product life solution. The CMx-SLx Intel processor supports Intel Hyper-Threading Technology (i3-6102E = 2 cores, 4 threads) and 8/16 GB of soldered ECC DDR4 memory at 1866/2133 to achieve optimum overall performance.

Integrated Intel Generation 9 Graphics includes features such as OpenGL 5.x, OpenCL 2.x, DirectX 2015, DirectX 12, Intel Clear Video HD Technology, Advanced Scheduler 2.0, 1.0, XPDM support, and DirectX Video Acceleration (DXVA) support for full HEVC/VP8/VP9/AVC/MPEG2 hardware codec. Graphics outputs include single-channel 18/24-bit LVDS (eDP x4 lanes optional) and three DDI ports supporting HDMI/DVI/DisplayPort.

The CMx-SLx is specifically designed for customers with high-performance processing graphics requirements who want to outsource the custom core logic of their systems for reduced development time.

The CMx-SLx features one mini DisplayPort (DDI1), one micro HDMI port (DDI2), and one single channel 18/24-bit LVDS port (eDP), two Gigabit Ethernet ports, four USB 2.0 ports, two COM ports, eight GPIOs (from BMC), two SATA 6Gb/s ports, and one onboard SATA SSD supporting SLC (up to 32GB) and MLC (up to 64GB). The module is equipped with an SPI AMI EFI BIOS with CMOS backup, supporting embedded features such as fail safe BIOS, remote console, CMOS backup, hardware monitor, and watchdog timer.

The CMx-SLx is capable of working in the temperature ranges of 0°C~60°C (standard) and −40°C~85°C (extended).



Technical specifications

Core System

CPU 6th generation Intel® Core™ Processor
Core™ i3-6102E 1.9GHz (no Turbo), 25W (2C/GT2)
Depending on application requirements, variants with following processors can be offered:
Core™ i3-6100E 2.7GHz (no Turbo), 35W (2C/GT2)
Xeon® E3-1505L v5 2.0/2.8GHz (Turbo), 25W (4C/GT2)
PCH CM236 (supports ECC memory, Intel® AMT)
Memory 8GB single channel 1867/2133 MHz DDR4-ECC soldered memory
Optional: 16GB DDR4-ECC single channel
Onboard Storage 8GB SLC SATA-SSD
Depending on application requirements, variants with following processors can be offered:
16GB SLC/MLC
32GB SLC/MLC
64GB MLC
Embedded BIOS AMI EFI with CMOS backup in 16MB SPI BIOS with Intel® AMT 11.00 support
Cache 3MB for Core™ i3 (Option: 8MB for Xeon® processor)
Expansion Busses PCI/104-Express Type 1 (stack-down)
PCI-104 (stack-down)

Audio

Chipset Intel® HD Audio integrated in chipset
available on “DisplayPort” and “HDMI” ports

Ethernet

Intel® MAC/PHY 1x Intel® MAC/PHY: i219LM/V (LM with AMT 11.0 support)
1x Intel® MAC/PHY: i210IT
Interface 10/100/1000 GbE connection

TPM

TPM TPM supported by BIOS

Video

GPU Feature Support Intel® Generation 9 LP Graphics Core Architecture, supporting 3 independent and simultaneous display combinations of DisplayPort/HDMI/LVDS
Hardware encode/transcode HD content (including HEVC) DirectX 12, DirectX 11.2, DirectX 11.1, DirectX 11, DirectX 10.1, DirectX 10, DirectX 9 support OpenGL 4.4/4.3 and ES 2.0 support
OpenCL 2.1, 2.0/1.2 support
Digital Display Interface DDI1/2 supporting DisplayPort/HDMI
LVDS Single channel 18/24-bit LVDS from eDP-to-LVDS IC

I/O Interfaces

USB 1x USB 3.1 and 6x USB 2.0 (2x USB 2.0 to PCIe/104 bus connector)
SATA 2x SATA 6Gb/s and 1x SATA to onboard SATA-SSD
Serial 2x RS-232
GPIO 8x
SMBus 1x
I2C 1x

Power

Standard Input ATX = 5V±5% / 5Vsb ±5% or AT = 5V±5%
Optional Input Depending on customer application and processor, “5VDC single voltage supply” variant can be offered.
Management ACPI 5.0 compliant
Power States: C1-C6, S0, S1, S3, S4, S5, S5 ECO mode (Wake-on-USB S3/S4, WOL S3/S4/S5)
ECO mode Supports deep S5 mode for power saving

Software

Operating Systems (Standard Support) Windows 10 (64-bit), Windows 7 (32/64-bit), Linux YOCTO 64-bit, VxWorks 7 (64-bit), QNX 6.6
SEMA® Local management, control of embedded computer systems
Extended EAPI for monitoring, controlling and analytics applications
Multiple OS support and across platforms (x86, ARM)

Mechanical

Form Factor PCI/104-Express Specification, Version 3.0
Dimension 117.4 mm x 96 mm

Environmental and physical specifications

Operating Temperature Standard: 0°C to +60°C
Extreme Rugged: -45°C to +85°C
Humidity 5-90% RH operating, non-condensing
5-95% RH storage (and operating with conformal coating)
Shock and Vibration IEC 60068-2-64 and IEC-60068-2-27
MIL-STD-202F, Method 213B, Table 213-I, Condition A and Method 214A, Table 214-I, Condition D
HALT Thermal Stress, Vibration Stress, Thermal Shock and Combined Test
Model Description
CMx-SLx-6102E-8G-8G PCI/104-Express Type 1 SBC, Intel Core i3-6102E (1.9GHz), CM236 chiptes, 8GB DDR4-ECC, 8GB SLC SATA-SSD, 0°C to +60°C
CM4‑SL2‑6100E‑16G‑32G PCI/104-Express Type 1 SBC, Intel core i3-6100E (max.2.7GHz), 16GB DDR4 ECC, 32GB SLC SATA-SSD, 0°C to 60°C
CM4‑SL4‑1505L‑16G‑32G PCI/104-Express Type 1 SBC, Intel Xeon E3-1505L v5 (2.0/2.8GHz), 16GB DDR4 ECC, 32GB SLC SATA-SSD, 0°C to 60°C
Accessories
CMx-SLx-X-10 CMx-SLx Cable Kit
CMx-SLx-TM-00 CMx-SLx Heat Spreader
CMx-SLx-TM-10 CMx-SLx Passive Heat Sink (0°C to +60°C)
CMx-SLx-TM-20 CMx-SLx Active Heat Sink for i3-6102E CPU (-40°C to +85°C)
CMx-SLx-TM-30 CMx-SLx Active Heat Sink for 45W CPU (-40°C to +85°C)
