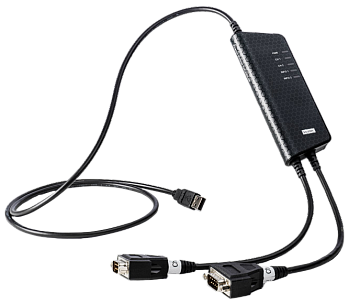

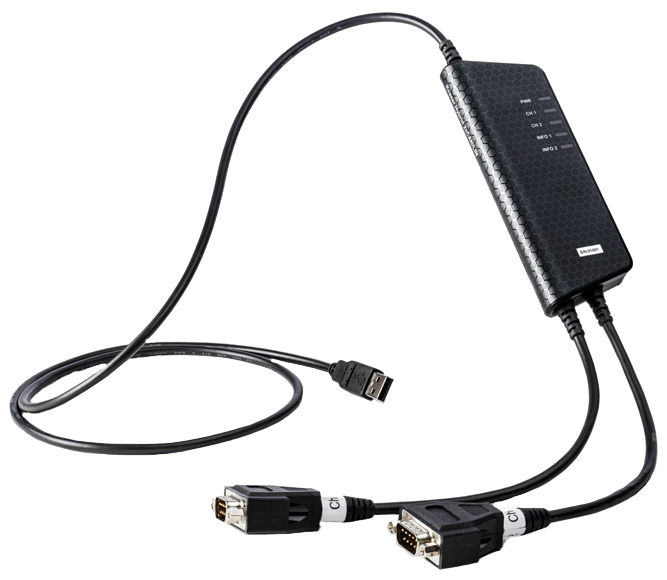

Hybrid 2xCAN/LIN

USB-2xCAN/LIN interface
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
  • Channels: 2
  • Bitrate: 50-1000 kbps
  • Lin Bitrate: 1-20 kbps
  • Operating temperature: -40 to +85 °C

Kvaser Hybrid 2xCAN/LIN is a flexible, dual channel interface that allows each channel to be assigned independently as CAN or LIN. This makes the Kvaser Hybrid 2xCAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!

With a standard USB connector and two CAN/LIN channels in two separate 9-pin D-SUB connectors, this interface can connect a PC to two CAN buses, two LIN buses, or one CAN and one LIN bus.

Feature List:

  • Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s
  • Capable of sending up to 20000 messages per second, per CAN channel
  • Supports CAN FD up to 5Mbit/s (with proper physical layer implementation)
  • Quick and easy plug-and-play installation
  • Supports CAN 2.0 A and CAN 2.0 B active
  • USB powered (bus V+ reference required for LIN)
  • LEDs indicate device status and bus activity
  • Galvanically isolated CAN buses
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
  • Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast
  • Extended operating temperature range from -40 to 85 °C
  • Support for SocketCAN, see elinux.org for details
Software
  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available
  • RP1210A Application Programming Interface available

Technical specifications
Channels 2
Bitrate 50-1000 kbps
Lin bitrate 1-20 kbps
Messages per second sending 20000
Messages per second receive 20000
Galvanic Isolation Yes
Error Frame Generation No
Error Counters Reading No
Silent mode No
Time Stamp Resolution 50 ms
Current Consumption Max 280 mA
Sound No
Interfaces USB
Connectors DSUB 9
Height 20 mm
Length 170 mm
Weight 170 g
Material PA66
Operating system Win XP, Linux, Win 7, Win Vista, Win 10, Win 8

Environmental and physical specifications

Operating Temperature -40 to +85 °C
Certificates CE, RoHS
Model Description
73-30130-00965-3 Kvaser Hybrid 2xCAN/LIN
