Protect-A-Pak
Single-use Shock Indicator
- Details
- Specification
- Omnidirectional device, detects impacts from all directions
- Sensitivity: 10-500g
- Accuracy: ±15%
- Operating Temperature: -100°F to 155°F (-73°C to 68°C)
Protect-A-Pak is one of the worlds most popular single-use, dual axis, and low-cost impact indicators.

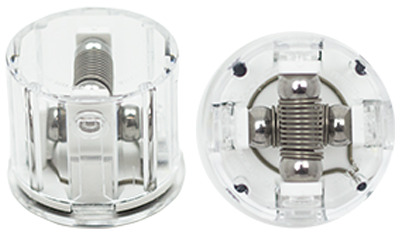

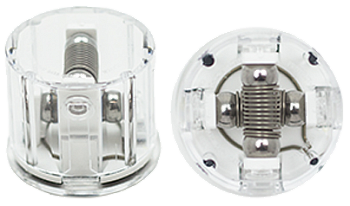

Provides a visual indication that hidden damage may have occurred. Usually used on shipping boxes and helps confirm the effectiveness of packaging. The cross spring and bearing design is engineered for simplicity and responsiveness.
When used with alert labels, a Protect-A-Pak reduces the incidence of damage by raising awareness that the package is being monitored.
| Technical specifications | |
| g-Range | 10g thru 100g in 10g increments, also 5g, 15g, 25g, 150g, 200g, 250, 300g, 500g |
| Impact Duration | 9.6ms |
| Height | 1in/2.5cm |
| Diameter | 1 1/4 in./3.2cm |
| Weight | 1 oz./28.35 grams |
| Accuracy | ±15% |
| Mounting | Self Adhesive or Mounting Flange |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -100°F to 155°F (-73°C to 68°C) |
