OMNI-G
Reusable Shock Indicator
- Details
- Specification
- Omnidirectional device, detects impacts from all directions
- g-range: 2-500g
- Accuracy: ±10%
- Operating Temperature: -100°F to 275°F (-73°C to 135°C)

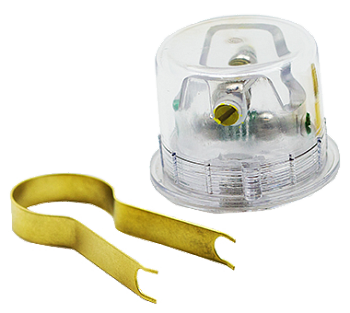

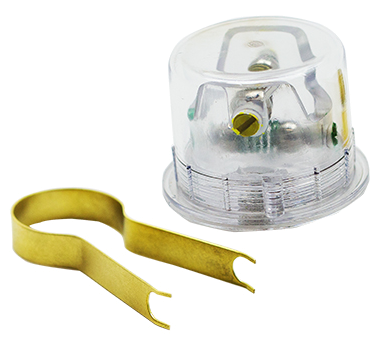

The Omni-G is a resettable impact indicator that can be reused hundreds of times using the resetting tweezers.
The cross spring and ball bearing design registers impacts from all directions.
Provides an immediate indication of possible hidden damage.
Set the spring loaded ball sets with coordinating color using tweezers. When set, screw together the two transparents pieces to create a dome. Adhere OMNI-G to product or shipping box, screw it on to a wooden shipping pallet or mount it on mounting plate and screw on to shipping surface.
The Omni-G is designed with two sets of spring loaded steel balls that become dislodged and fall into a transparent dome when struck with an impact that exceeds the preset g-level.
| Technical specifications | |
| g-Range |
2g-10g in 1g increments 15g-40g in 5g increments 50g-100g in 10g increments Also available in 125g, 150g, 175g, 200g, 250g, 300g, 400g, and 500g |
| Impact Duration | 8.4 ms |
| Height | 1.5 in. (3.8 cm) |
| Diameter | 2.06 in. (5.2 cm) |
| Weight | 2 oz. (57 grams) |
| Accuracy | ±10% |
| Mounting | #10-32 holes in base (5 mm) |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -100°F to 275°F (-73°C to 135°C) |
