Impact-O-Graph (Impact Recorders "M" Series)

Reusable Impact Recorder
  • Details
  • Specification
  • Well designed, reliable and simple
  • Charts magnitude, direction and time of impact
  • Records continuously for up to 6 months
  • Shocks up to 300 times the force of gravity (300g) can be identified immediately by examining the chart

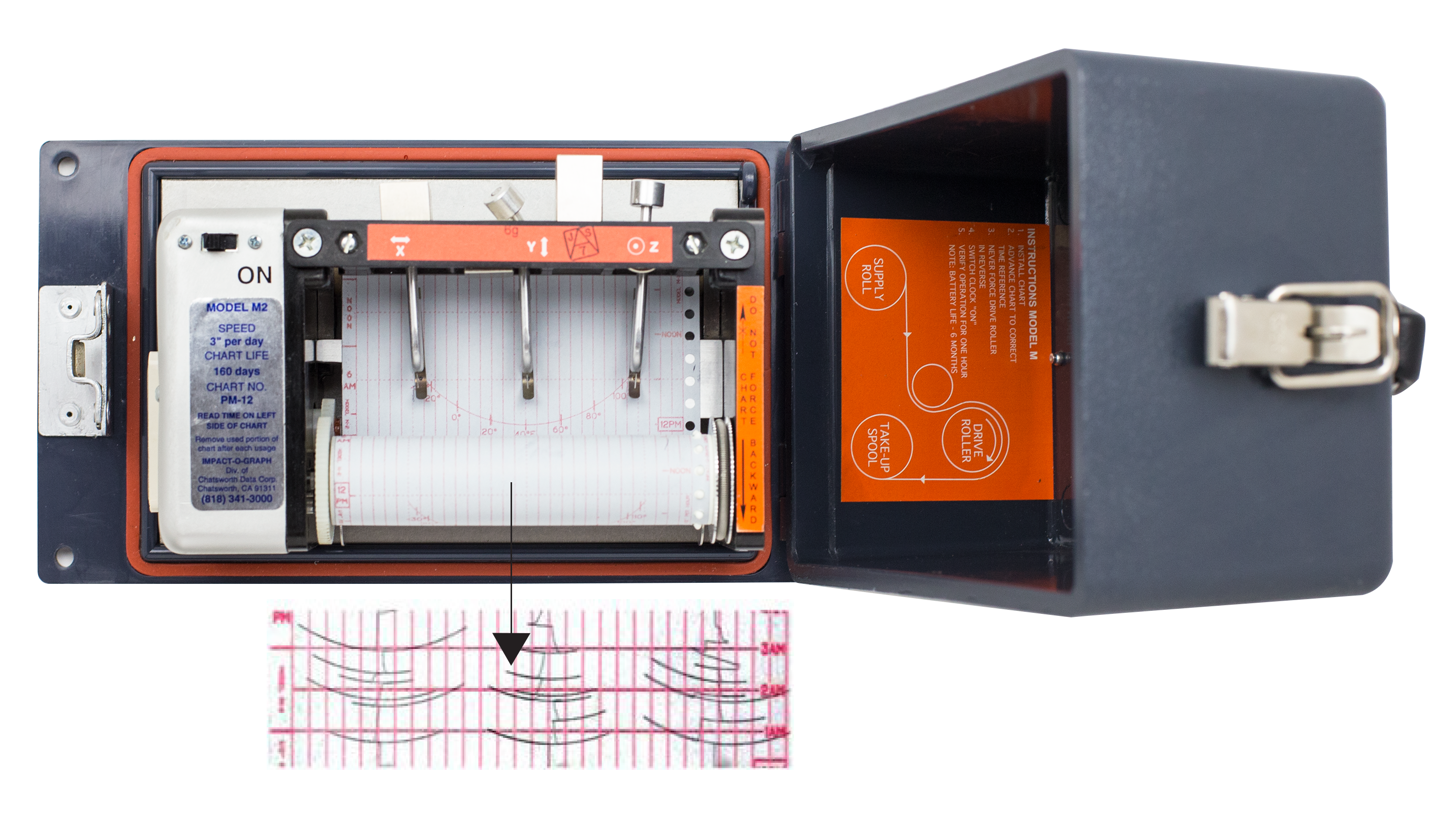

Three mass-spring styluses work independently of each other, each measuring one axis - X, Y and Z. Each stylus operates by angular vibration with one degree of freedom in the direction it monitors. The mechanical, friction-free linkage from each stylus' inertia mass converts motion from any of the three directions into the same plane and draws these forces onto the chart paper for easy reading.

Recorders are delivered ready to use with paper and battery already installed (no ink is used). An Operations Manual is provided with each recorder.

1. Mount the Impact Recorder securely to the object to be monitored.
2. Remove the stylus guard and set the chart paper to the starting time.
3. Turn the recorder on. Lock the cover if desired.

The recorder is ready to document impacts on pressure sensitive paper.

The three bracket styli can be ordered with the same or different G-levels, for example: 2x, 15y, 6z. The appropriate G-level will depend on several factors, including product sensitivities, mode of transport and packaging.



Choose The Right Recorder For Your Needs

 Model  Chart speed  Metric  Chart life  Battery life
 M-4  ½ in/hour  1.27 cm/hour  40 days  6 months
 M-3  ¼ in/hour  0.64 cm/hour  80 days  6 months
 M-2  3 in/day  7.62 cm/day  160 days  6 months
 M-1  2 in/day  5.08 cm/day  240 days  6 months
 M-M  1 in/day  2.54 cm/day  1 year  6 months
 T-24  Ratchet Advance — paper advances at each impact      No Battery

Typical G-Rating/Sensitivity for Vehicles

 Vehicle suspension "ride"  G-Rating
 Passenger car - smooth roads  1
 Vans – smooth or rough roads  6
 Truck/trailer - smooth roads  6
 Truck/trailer - rough roads  15
 Off-road vehicles  15
 Rail freight cars  10

Specify Your Model

   Model M Recorder  T-24
 Dimensions:  9 ½ X 5 1/8 X 3 ¾”
 29.5 X 11.5 cm
 9 X 6 1/8 X 2”
 22.9 X 15.6 X 5 cm
 Weight:  4 lbs
 1.8 kilo
 1 1/2 lbs.
 0.7 kilo
 Shipping Weight:  5 lbs
 2.3 kilo
 2 lbs.
 0.9 kilo
 Temperature:  -20°F to +220°F
 -29°C to +104°C
 -20°F to +140°F
 -29°C to +60°C
 Case Material:  Poly Carbonate  Vivak
*All recorders come with a rugged housing. A water-tight housing or viewing window are available
*Leasing options are available in North America

Specify Your Model

 Package weight lbs.  Weight kilos  G-rating
 Under 40 lbs.  Under 18 kilo  70 - 150
 40 -100 lbs.  18 - 45 kilo  60 - 80
 Over 100 lbs.  45 - 450 kilo  20 - 50

Stylus Brackets* Available

 Gs  Natural Frequency (fn, cps)  Critical Pulse Duration (milliseconds)
 0 to 2*  8.5  58.8
 0 to 4*  10.0  50.0
 0 to 6  12.5  40.0
 0 to 10  15.8  31.6
 0 to 15  19.5  25.6
 0 to 20  17.6  28.4
 0 to 30  13.0  21.8
 0 to 50  25.0  20.0
 0 to 70  27.0  18.5
 0 to 100  29.7  16.6
 0 to 200  35.0  14.3
 0 to 300  38.0  13.2
*Special Bracket (added cost)
