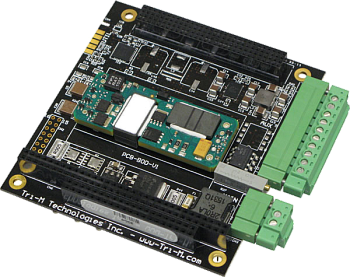

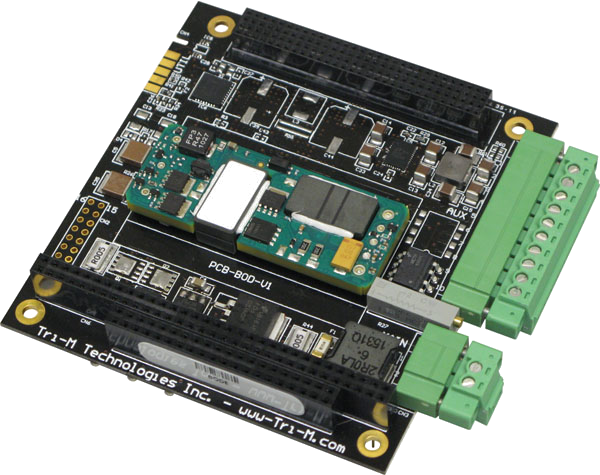

Tri-M's TPSi1075 is an isolated PC/104-Plus power solution, designed for embedded applications requiring isolation and clean power in rugged environments.
With wide-range input voltages, transient suppression, galvanic isolation, and quick-disconnect terminal mating plugs, this rugged design is ideal for any industrial application.
Designed for harsh environments, including military standards, shock, vibration and extended temperature, the TPSi1075 is well suited for transportation, defence, and aerospace industries. For reliable protection and high performance, the TPSi1075 is the perfect solution for isolated DC power.
Technical specifications | |
Input Voltage | +9V to +33V DC |
Outputs Voltages | +3.3VDC @ 8A, +5VDC @ 15A |
Output Power | 75W Total |
Efficiency | 88% @ 17V |
Output Ripple | 60mV @ 12V |
In-Rush Current | 10A |
Reverse Polarity | up to -30V |
Current Limiting Fuse | Onboard 15A |
Transient Suppression | 6000W Total |
Quiescent current | 88ma @ 15V (LEDs Disabled) |
Dimensions | 90mm x 96mm x 15mm (3.55” x 3.775” x 0.6”) |
Weight | 83.4g (2.94oz) |
Certifications | RoHS compliant |
Options | Conformal Coating Non-Stackthrough Lead-Tin Soldering |
Environmental and physical specifications |
|
---|---|
Temperature Range | -40°C to +85°C (-40°F to 185°F) |
Model | Description |
TPSi1075 | +3.3V,+5V, Combined Total 75W |
