Blue Heat/Net Sync
Vendor:Connect Tech
- Details
- Specification
- Order information
- 4 ports
- Baud Rate: up to 10 Mbps
- 66MHz CPU with 16 MB SDRAM and 8 MB Flash
- Operating Temperature: 0°C to +60°C (32°F to 140°F)

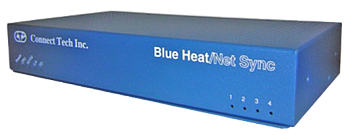

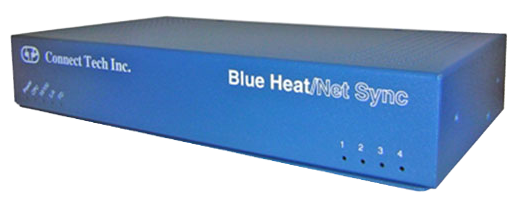

Connect Tech’s Blue Heat/Net Sync offers a synchronous Ethernet-to-serial solution for data communications.
Based on the robust uCLinux (Linux embedded operating system), the Blue Heat/Net Sync can be programmed with application specific protocols. Blue Heat/Net Sync incorporates multiple electrical interfaces and remote configurability to free devices from a physical connection. Remote access increases location flexibility and simplifies future installations or upgrades, reducing costs.
The Blue Heat/Net Sync can be configured and controlled via serial interface or remotely via web based HTTP. With the option to boot from on-board Flash memory or a network location, updating devices in the field can be done from a central location.
| Technical specifications | |
| Ports | 4 ports |
| Electrical Interfaces | Software switchable; V.28 (RS-232), V.10 (RS-423), V.11 (RS-422, X21), V.35, EIA-530, EIA-530A, V.36 (RS-449) – Termination resistors for V.11 and V.35 |
| Encoding Modes |
NRZI: NRZ, NRZB, NRZI-Mark, NRZI-Space Bi-Phase: Bi-Phase-Space, Bi-Phase-Manchester, Differential Bi-Phase |
| Control Signals | Differential: TxD+/-, RxD+/-, RTS+/-, CTS+/-, DTR+/-, DCD+/-, DSR+/-, RxClock, TxClock, Single ended: TxD, RxD, DTR, DSR, RTS, CTS, RI, DCD, RxClock, TxClock |
| Baud Rate | Asynchronous: up to 230.4 Kbps, Synchronous: up to 10 Mbps |
| Protocols | BiSync, DLC, HDLC, MonoSync, Transparent BiSync (with 16 and 32 bit CRC checking) |
| LAN interface | 10Base-T, 100Base-TX Ethernet (auto-sensing) |
| CPU | 66MHz CPU with 16 MB SDRAM and 8 MB Flash |
| Memory | 16MB SDRAM, 8MB Flash |
| Configuration | Web browser (HTTP), Telnet console or serial utility |
| Dimensions | Length: 133 cm/5.24” | Width: 244 cm/9.61” | Height: 43 cm/1.69” |
| Clocking | Software selectable internal/external clocking. External clocking is provided on TXC and RXC pin |
| Bipolar Clock | Clock input accepts sin or square wave signals up to 10 Mbps, +/- 10 V |
| ESD Protection | 15 kV |
| Power Requirements | 5 V DC (2.4A) to 30 V DC (450mA) using DC barrel or Phoenix screw terminal connector |
| Rack Mount | 1U, 19” rack mountable |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature: | 0°C to +60°C (+32°F to +140°F) |
| Humidity | 5 to 95% non-condensing |
| Regulatory Approvals: | EN 55022, EN 55024, FCC/ICES-003 |
| Model | Description |
| BMG006 | Blue Heat/Net, Multi-protocol with 4 ports. RoHS compliant. |
| BMG006-01 | Blue Heat/Net bundle includes one of: BMG006, CBG006, MSG007 |
| CBG006 | Straight through CAT 5 Ethernet Cable 1.8 m (6 ft). RoHS compliant. |
| MSG007 | 3.0A 5V regulated universal power supply with North American line cord. RoHS compliant. |
| MSG029 | Rack mount kit for BNG006/BNG008/BMG006 |
| MS009 | DIN Rail Mount option |
| MS010 | DIN rail mount clips |
